PW-SYS solar panel mounting system

Our reliable mounting systems ensure the durability of the solar panel system

PW-System configurator Details
100

100

Successful projects in 70 sites

70

70

Solar parks constructed

70

70

MW installed capacity

36500

36500

t CO2 savings

100

100

GWh green energy production

About us

About us

PW-SYS is a self-developed product of Pannonwatt Zrt., which is based on the experience accumulated during construction of more than 70 solar parks.

The PW-SYS structures are made of increased durability (S530), hot-dip galvanized and, if required, special, Magnelis-coated steel thus guaranteeing maintenance-free operation for a minimum of 25 years. Based on the durable structural elements the solar park is able to produce energy with minimal expenditure.

During the development and production of our mounting systems, we pay special attention to the quality, environmental protection and work safety, which is guaranteed by our certified integrated ISO systems. The PW-SYS system is dimensioned according to the Eurocode 1 standard and is guaranteed to meet domestic wind and snow loads.

PannonWatt Zrt., the manufacturer of PW-SYS, has obtained the Bisnode certificate, which is one of the most common company ratings in Europe, proving its financial stability and low risk. Less than 1% of companies in Hungary have the AAA rating gained by PannonWatt Zrt.

Go to our solutions

Our solutions

We offer a lifelong partnership – with optional services – tailored to your needs.

The PW-SYS system is modular, therefore it meets all installation needs. In order to maximize energy production and efficiency, we offer our customers four basic types of mounting structures, including three- or four-angle structures. On request, we can also design and implement completely unique solutions.

Design your unique solar module mounting system and see our price offer right away!

Go to the online configurator

Modular
system

<h3>Modular<br> system</h3>

Custom
solutions

<h3>Custom<br> solutions</h3>

PW-System

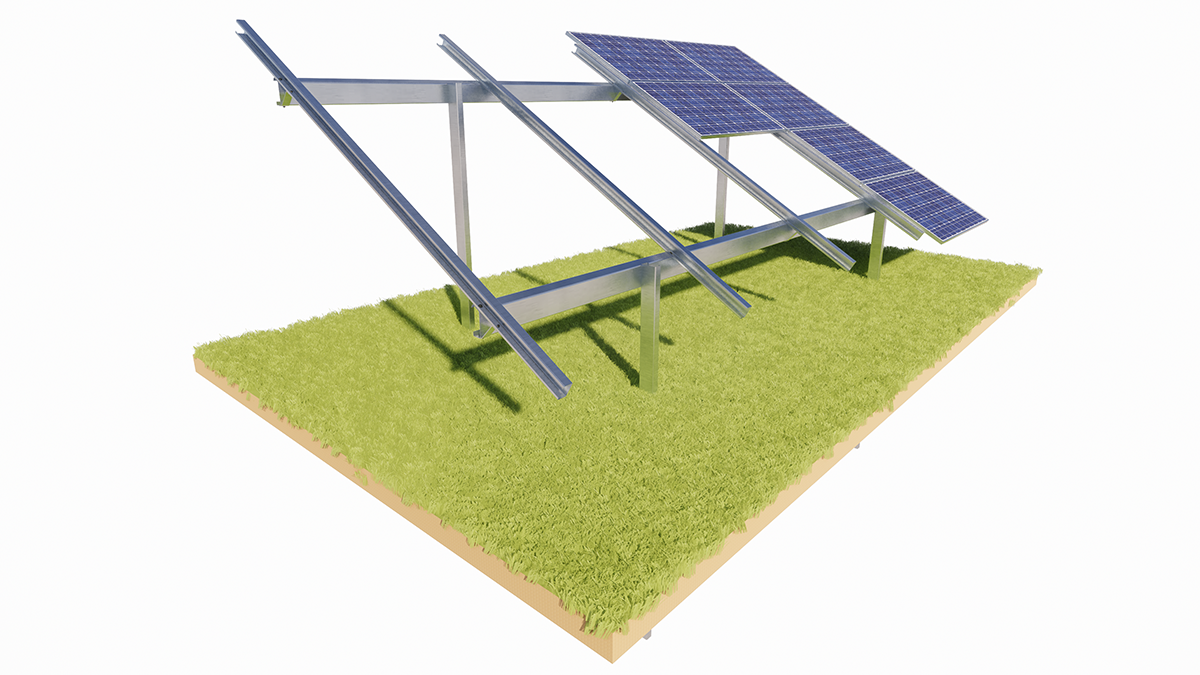

H4-PW60/72

  • 4 rows, horizontal
  • 20°/25°/30°/35°
  • Post driven ground mount
  • 60-cell (120 half-cell); 72-cell (144 half-cell)
  • High strength structural steel S350GD
  • Hot-dip galvanizing, optional Magnelis coating
More details

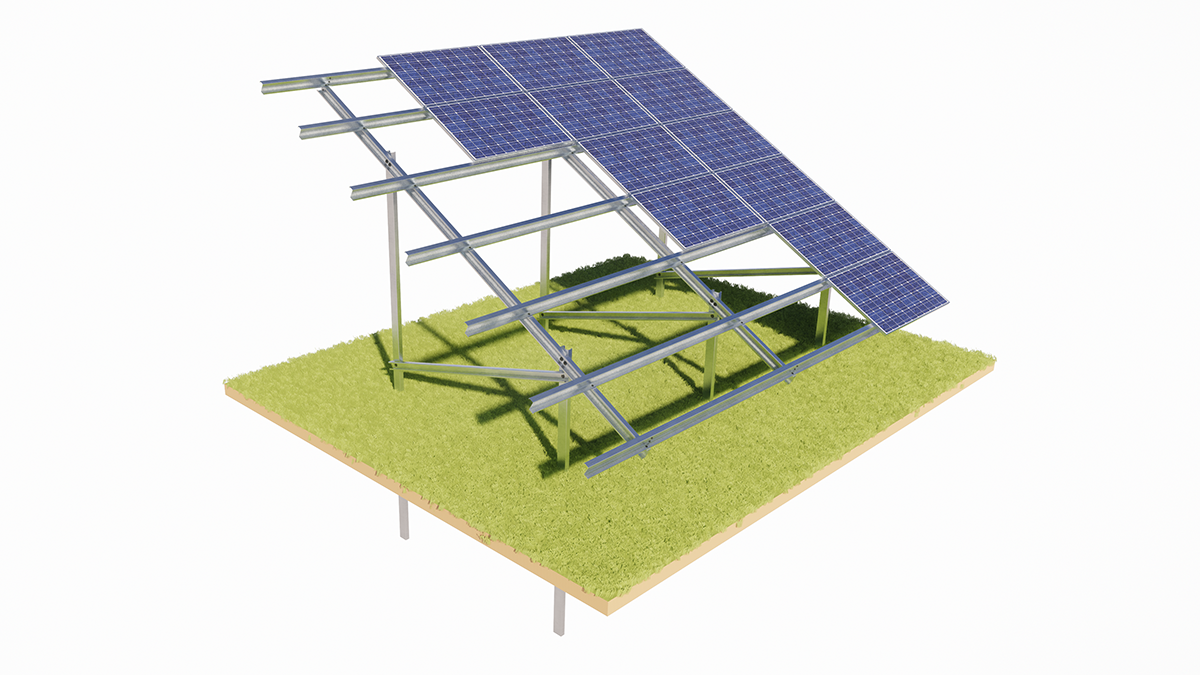

H6-PW60/72

  • 6-rows, horizontal
  • 20°/25°/30°/35°
  • Post driven ground mount
  • 60-cell (120 half-cell); 72-cell (144 half-cell)
  • High strength structural steel S350GD
  • Hot-dip galvanizing, optional Magnelis coating

More details

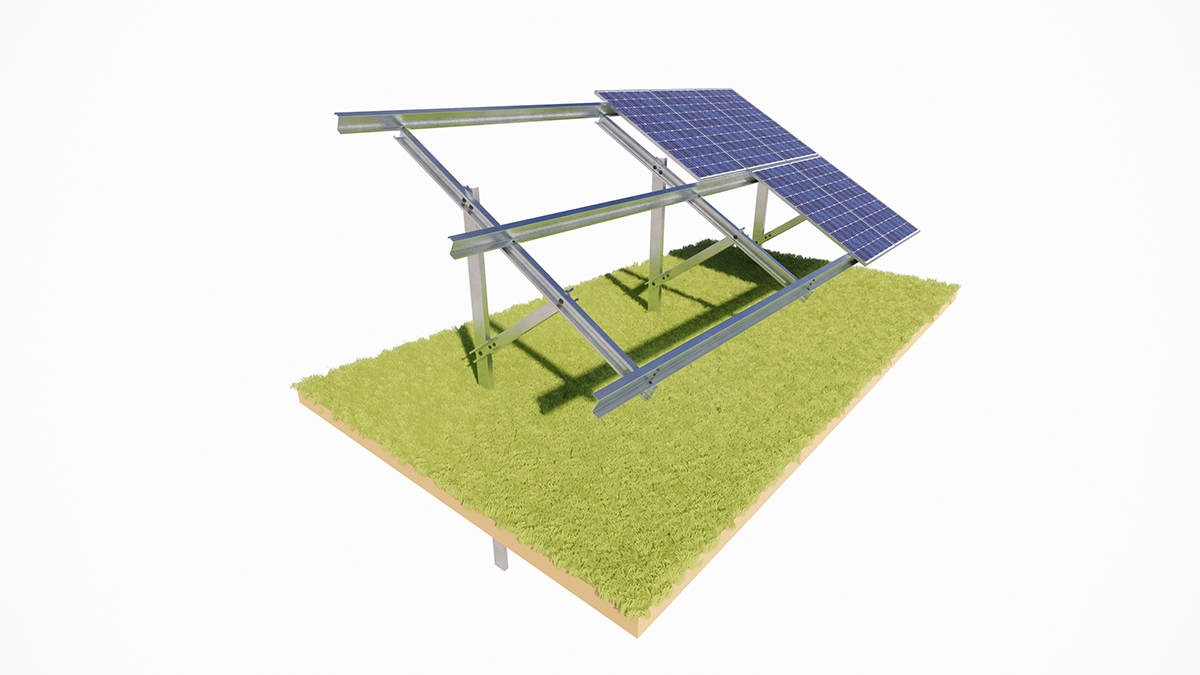

V2-PW60/72

  • 2 rows, vertical
  • 25°/30°/35°
  • Post driven ground mount
  • 60-cellás (120 félcellás), 72-cellás (144 félcellás)
  • High strength structural steel S350GD
  • Hot-dip galvanizing, optional Magnelis coating
More details

V3-PW60/72

  • 3-row, vertical
  • 20°/25°/30°/35°
  • Post driven ground mount
  • 60-cell (120 half-cell), 72-cell (144 half-cell)
  • High strength structural steel S350GD
  • Hot-dip galvanizing, optional Magnelis coating
More details
