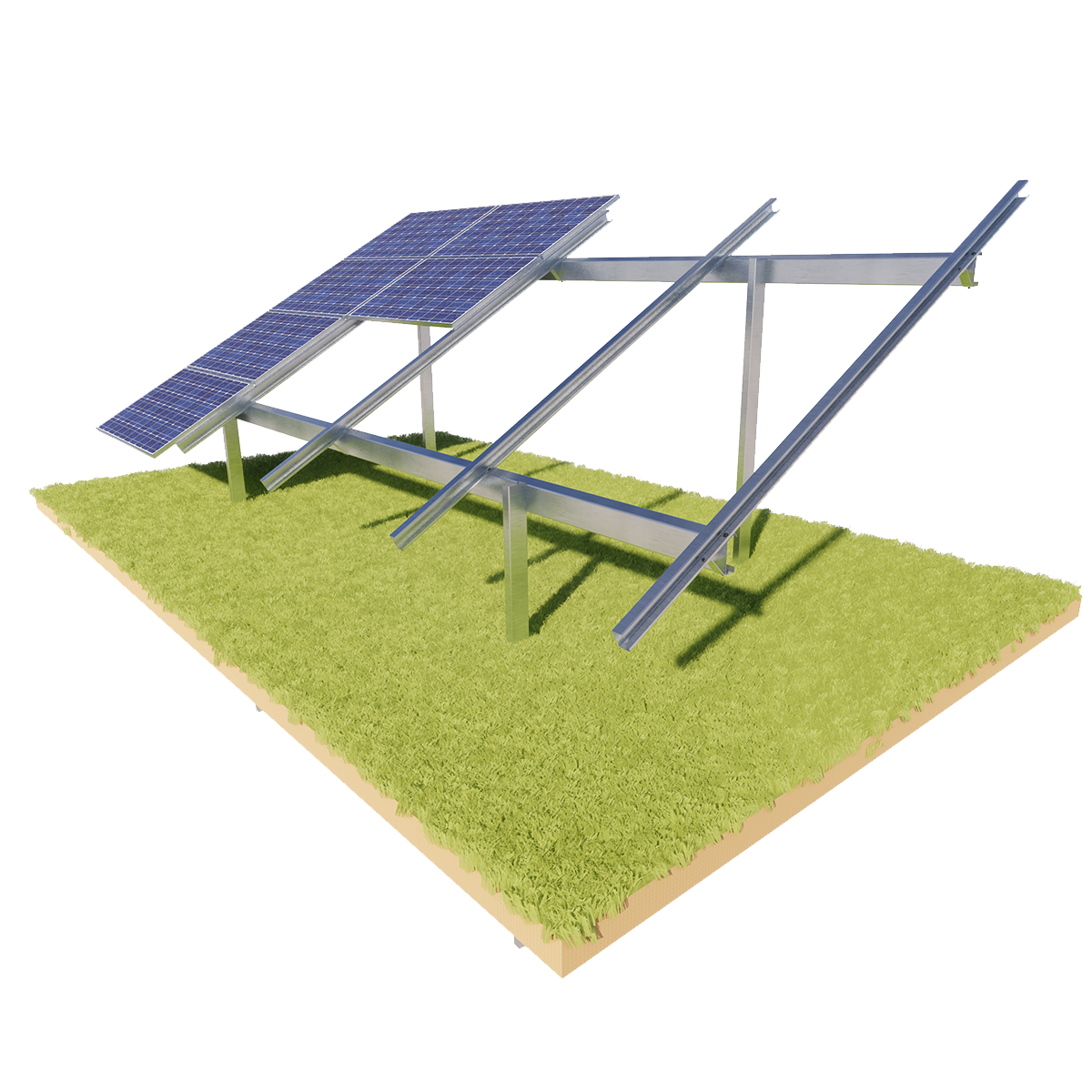

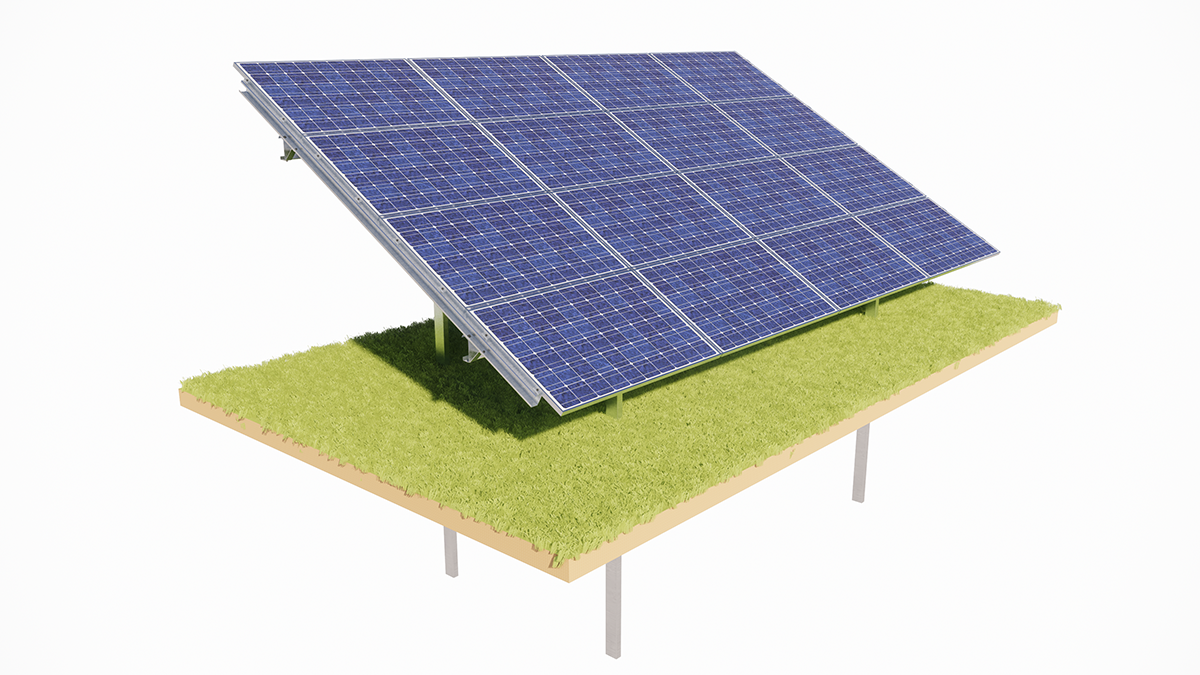

Arrangement of modules: 4 rows, horizontal
Angle: 20°/25°/30°/35°

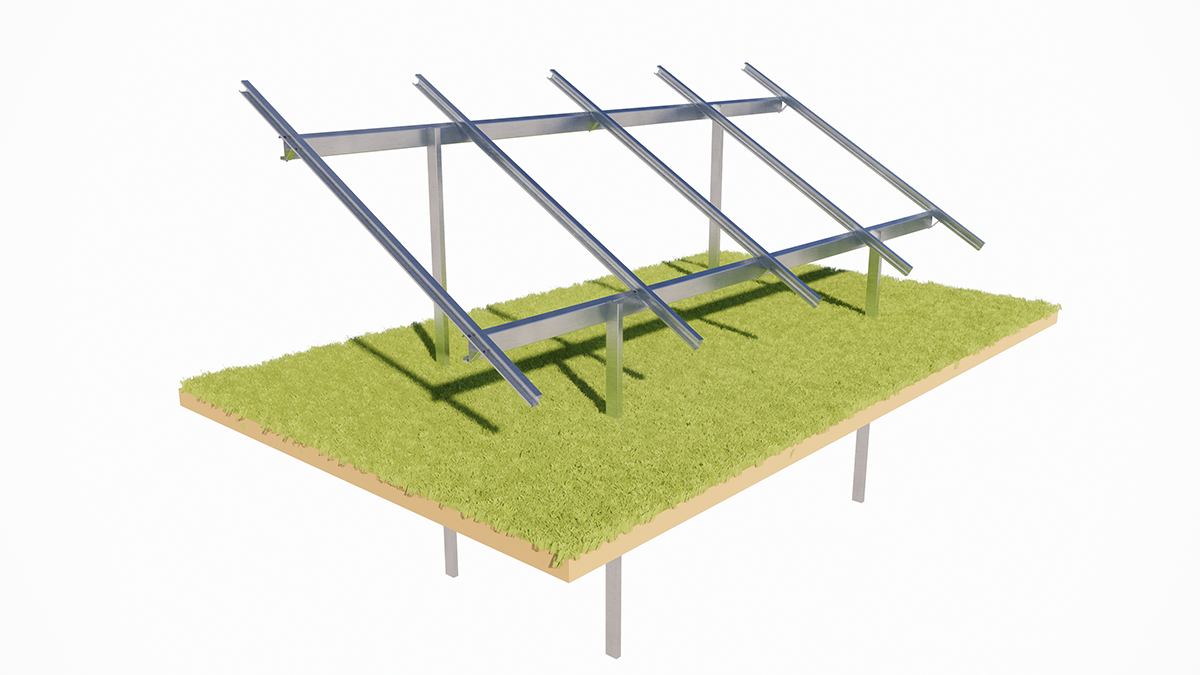

Installation: Post driven ground mount
Solar module size: 60-cell (120 half-cell); 72-cell (144 half-cell)

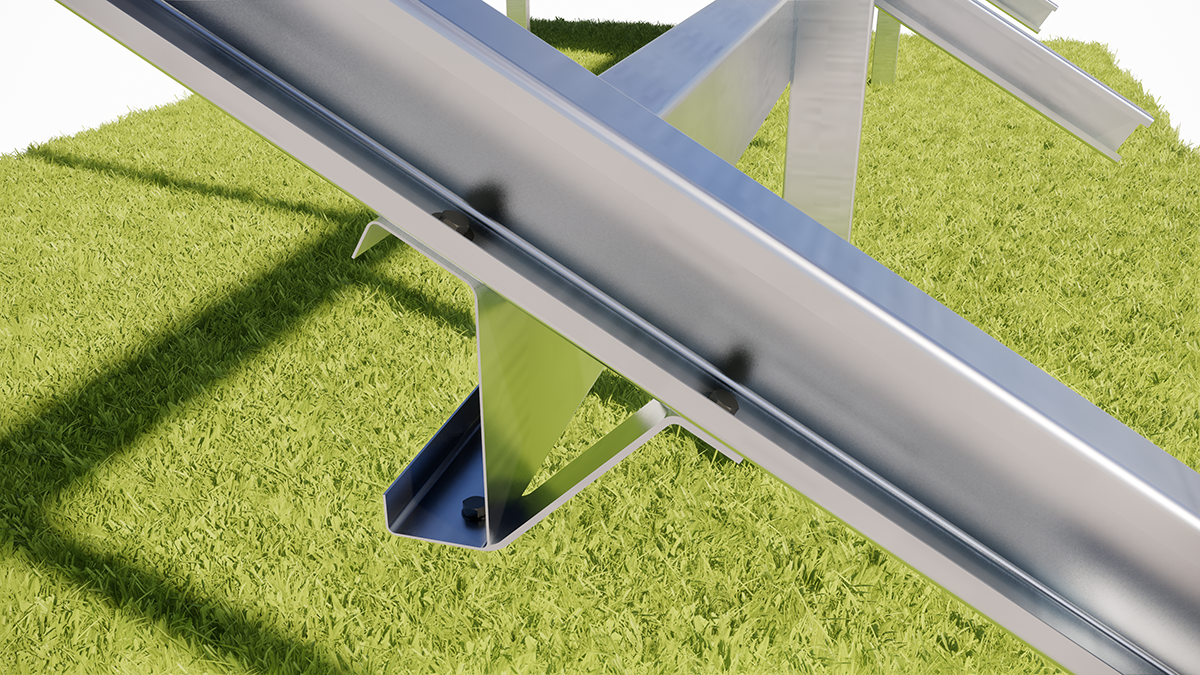

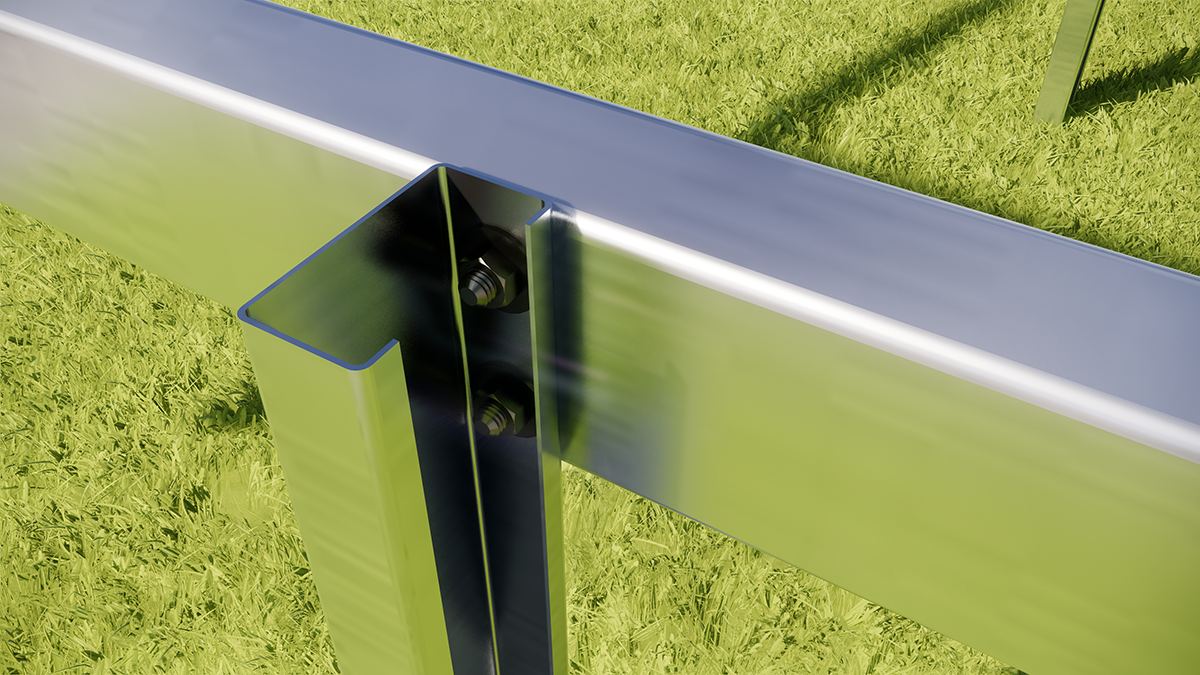

Material: high strength structural steel S350GD
Anti-corrosion coating: hot-dip galvanizing, optional Magnelis coating
PW System also meets Eurocode 1 standard, and are sized to withstand up to 110km/h wind load and 100 cm snow.
In order to make the most economical use of the solar panels, our experts recommend creating a row spacing that ensures that the panel is never covered, regardless of the solar incidence angle.
| Layout | Solar panel | Angle |
Suggested row distance (mm)
|
| H4 | 60 | 25 | 8650 |

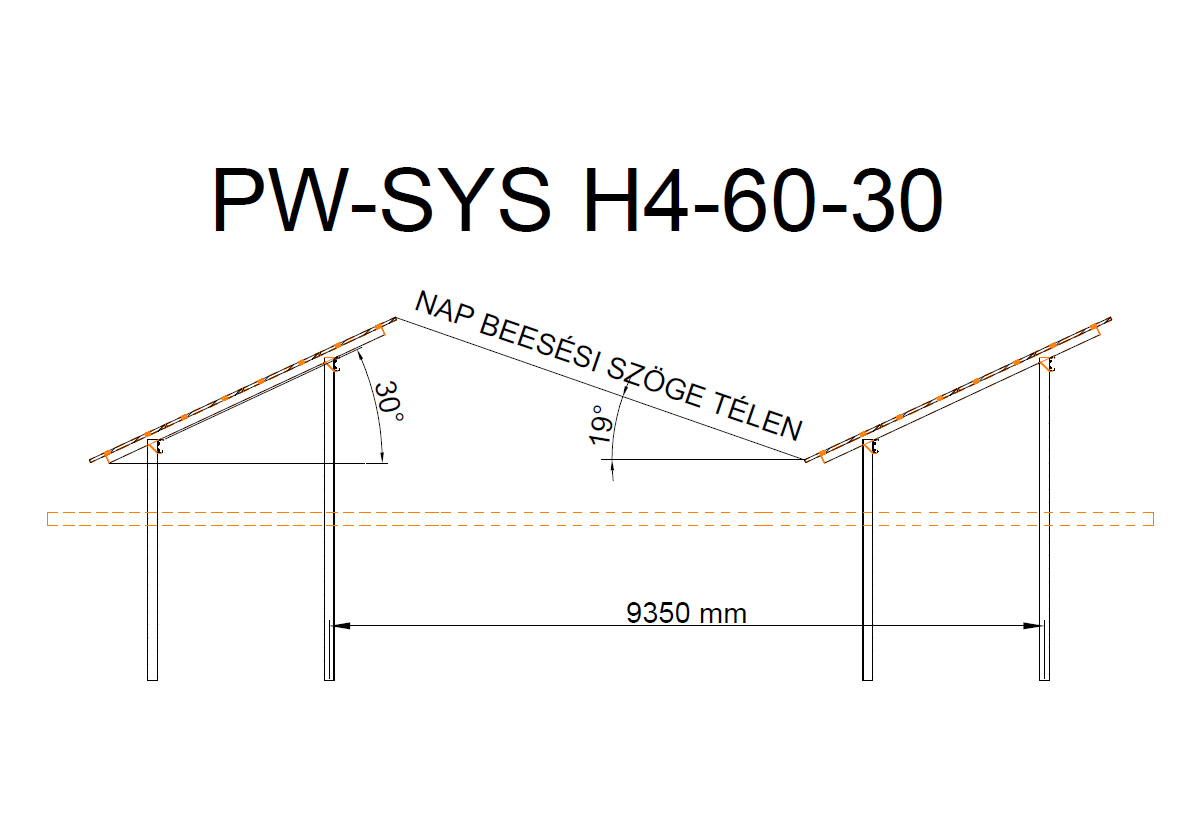

| H4 | 60 | 30 | 9350 |
| H4 | 60 | 35 | 10050 |

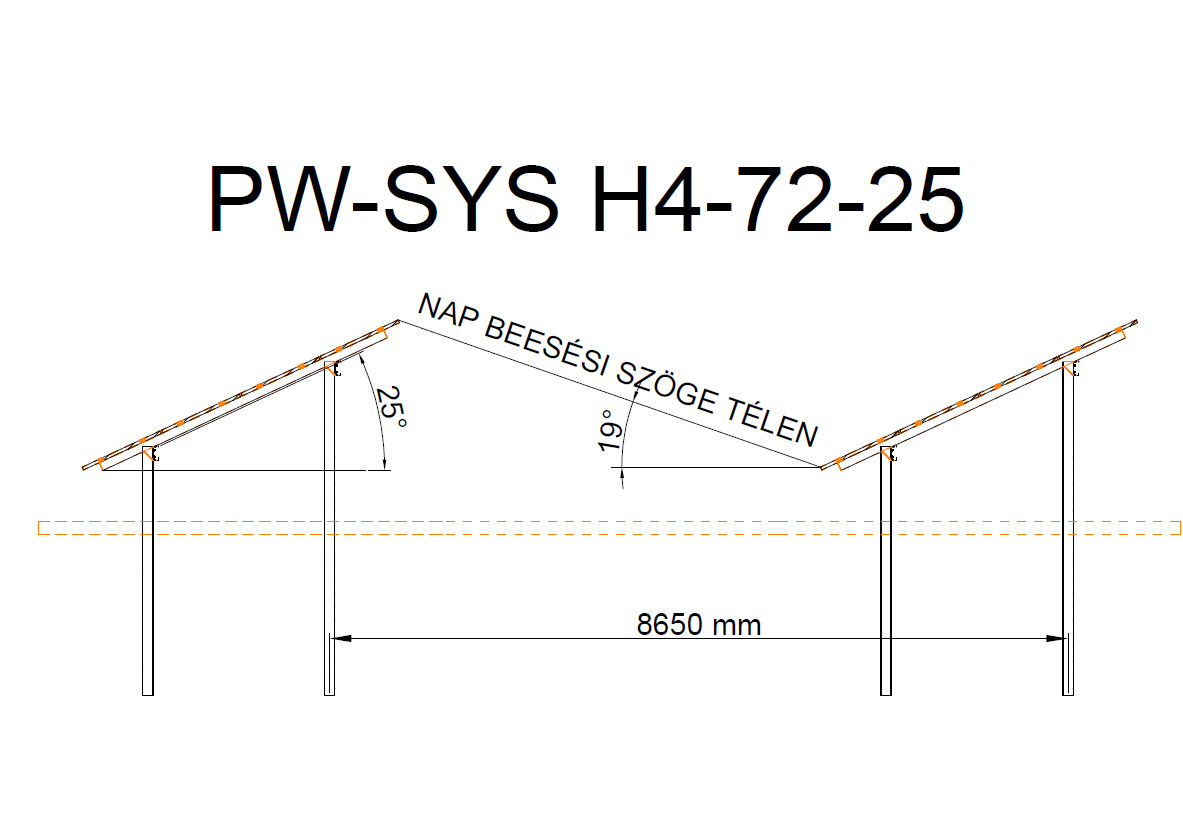

| H4 | 72 | 25 | 8650 |

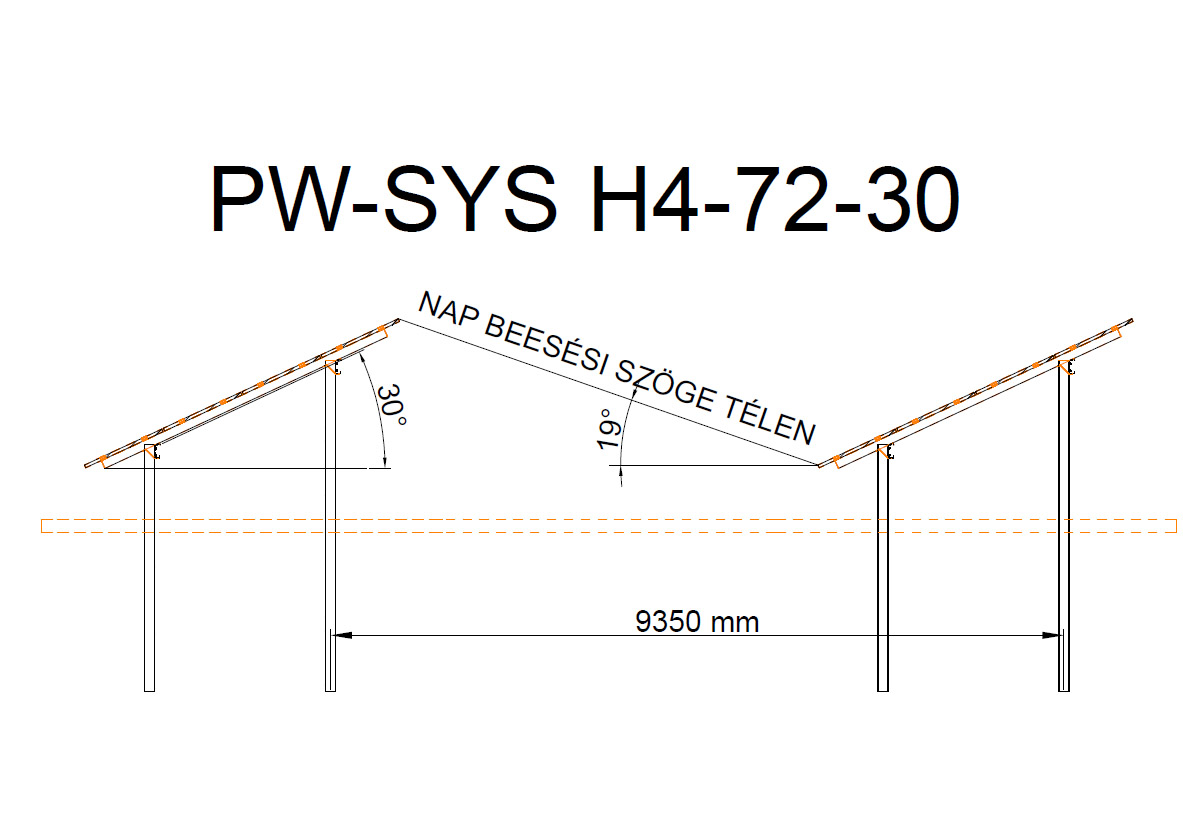

| H4 | 72 | 30 | 9350 |
