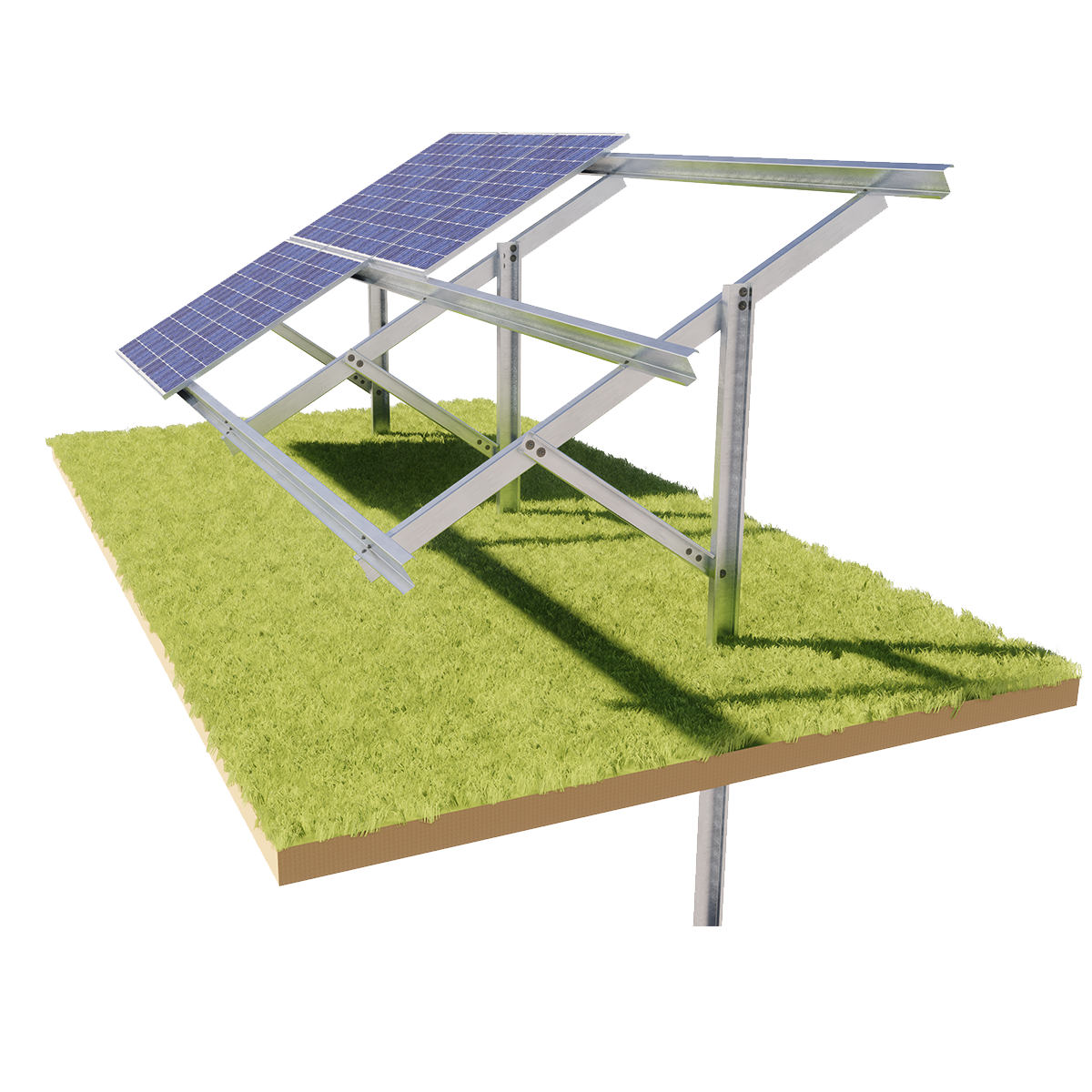

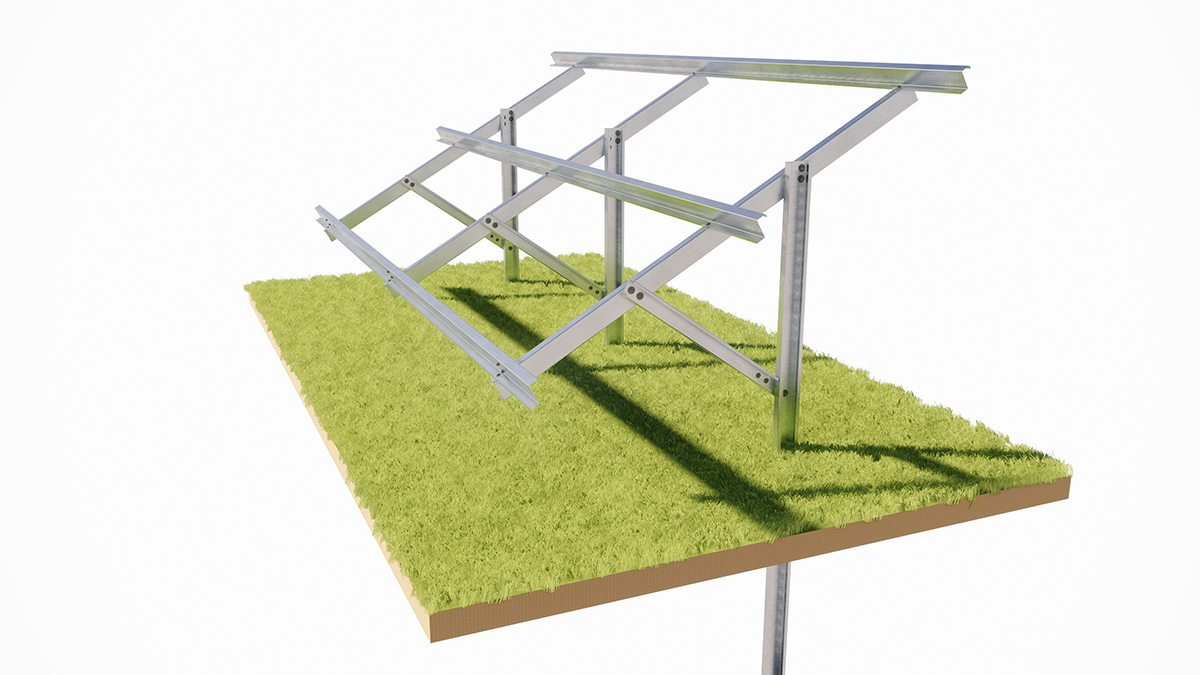

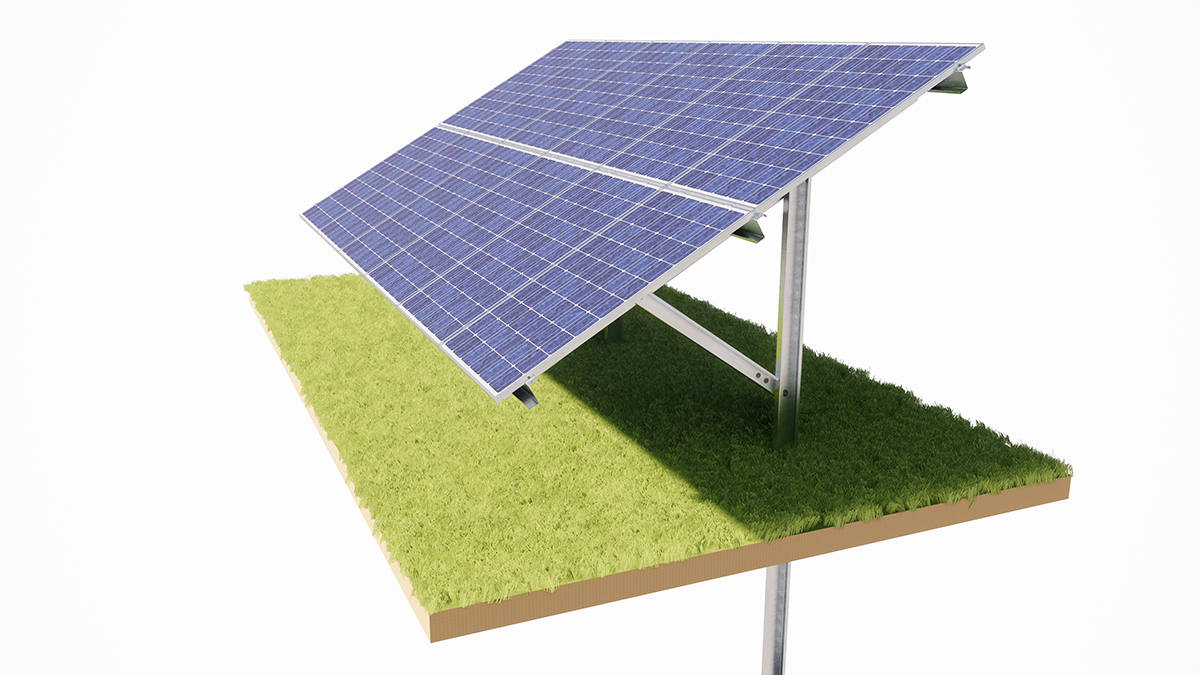

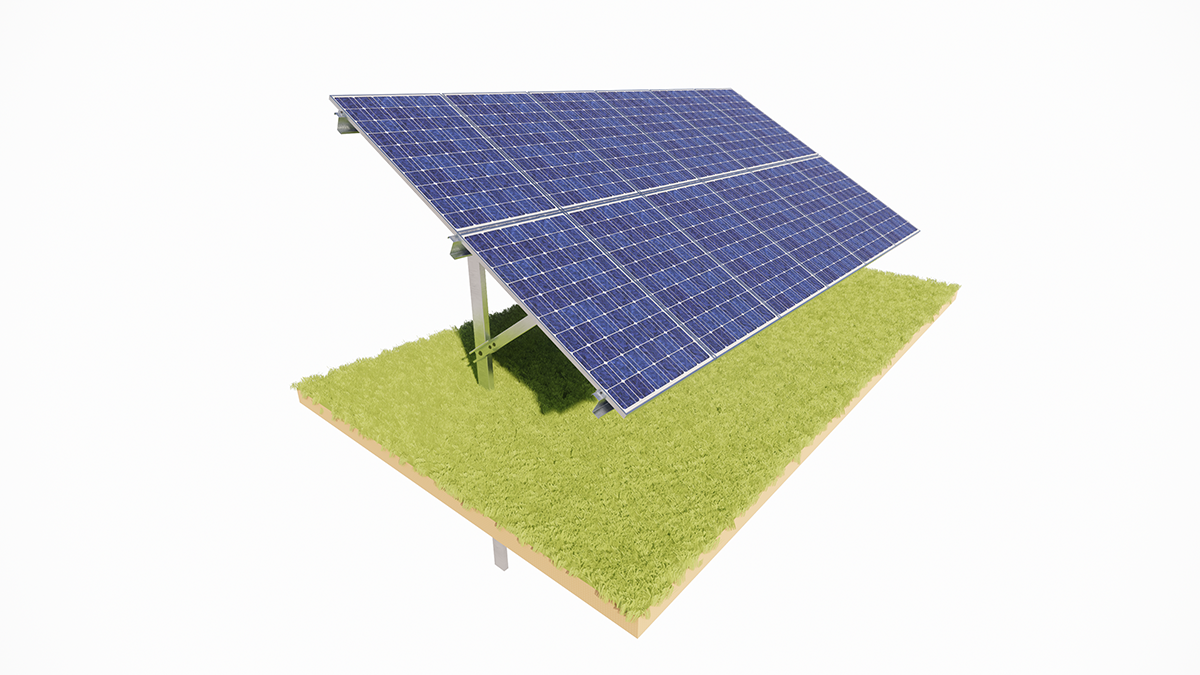

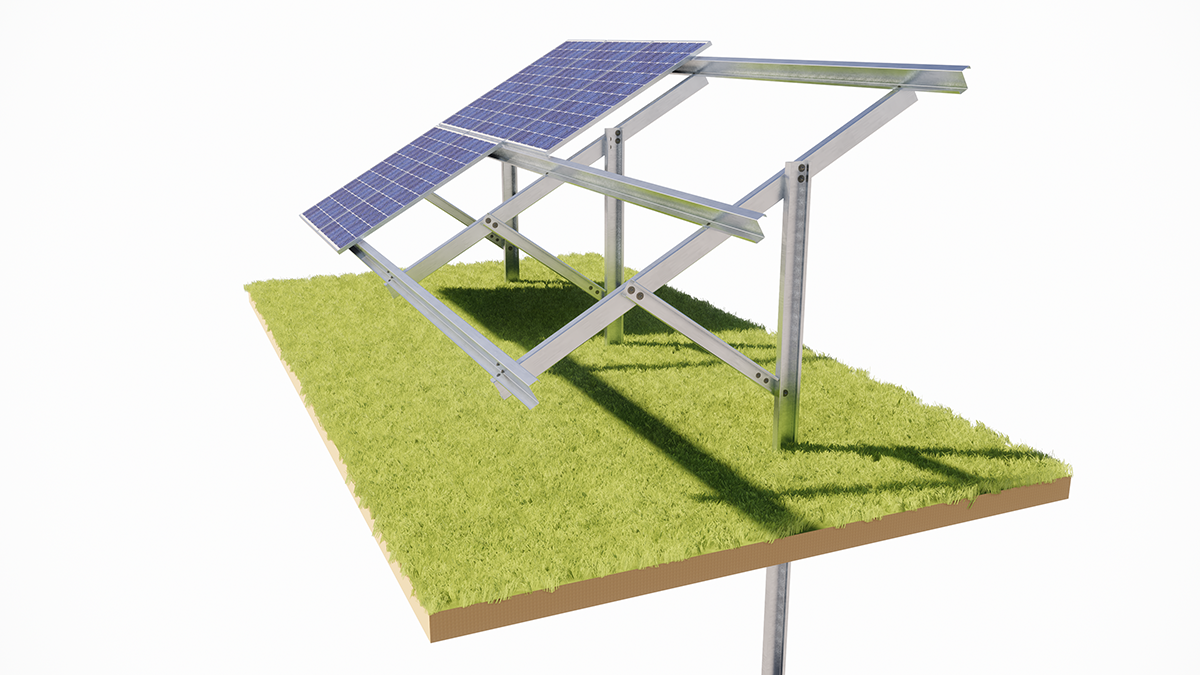

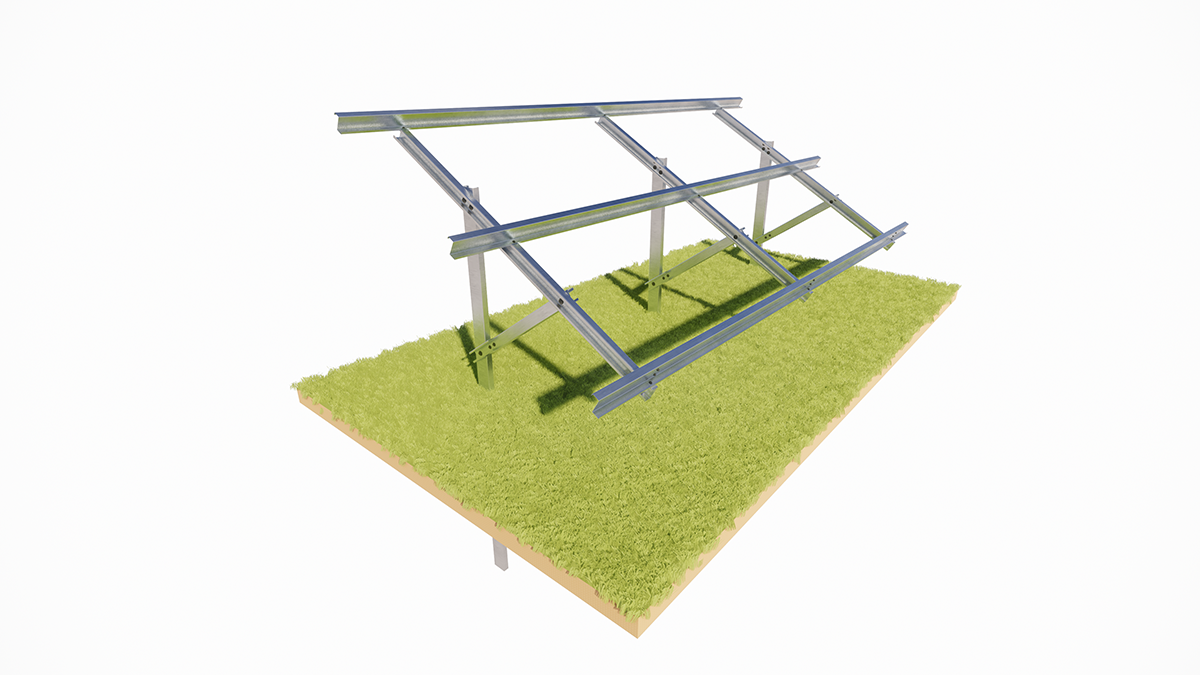

Arrangement of modules: 2 rows, vertical
Angle: 25°/30°/35°
Installation: post driven ground mount

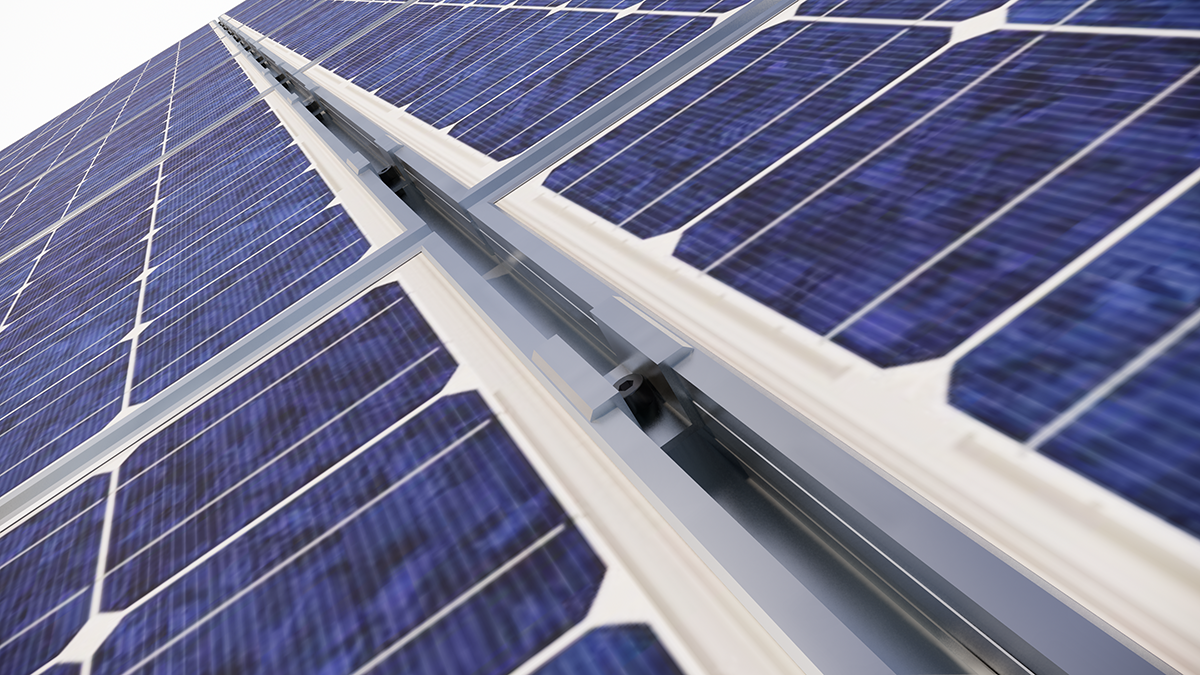

Solar module: 60-cell (120 half-cell); 72-cell (144 half-cell)

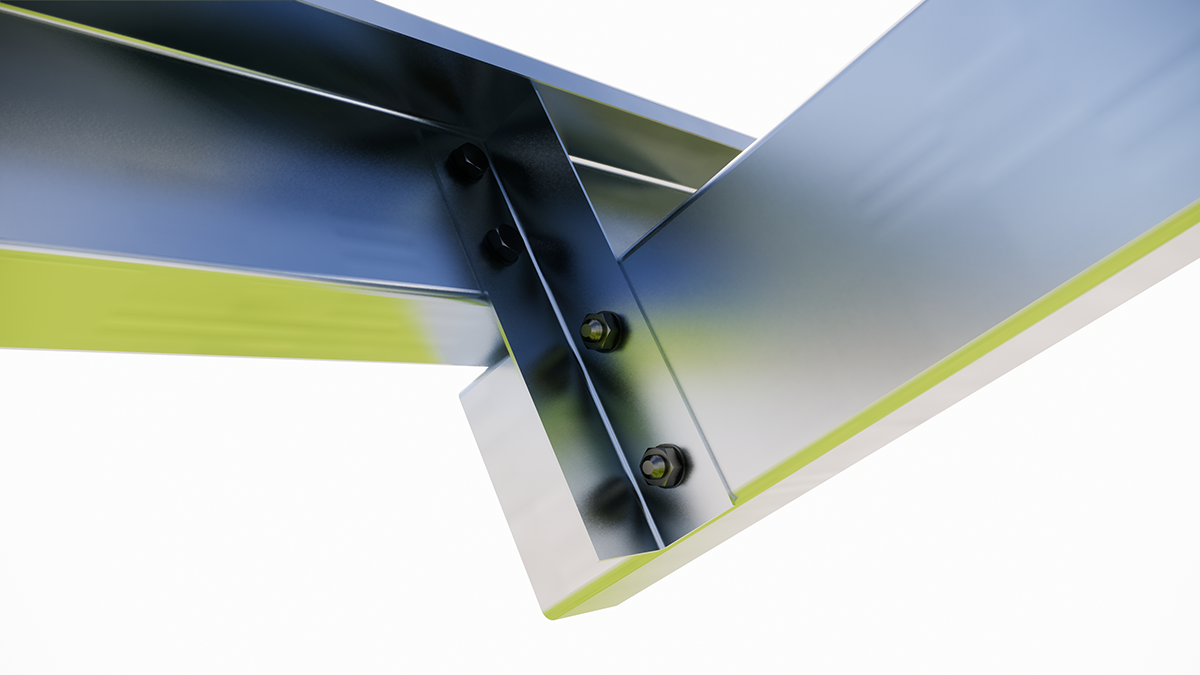

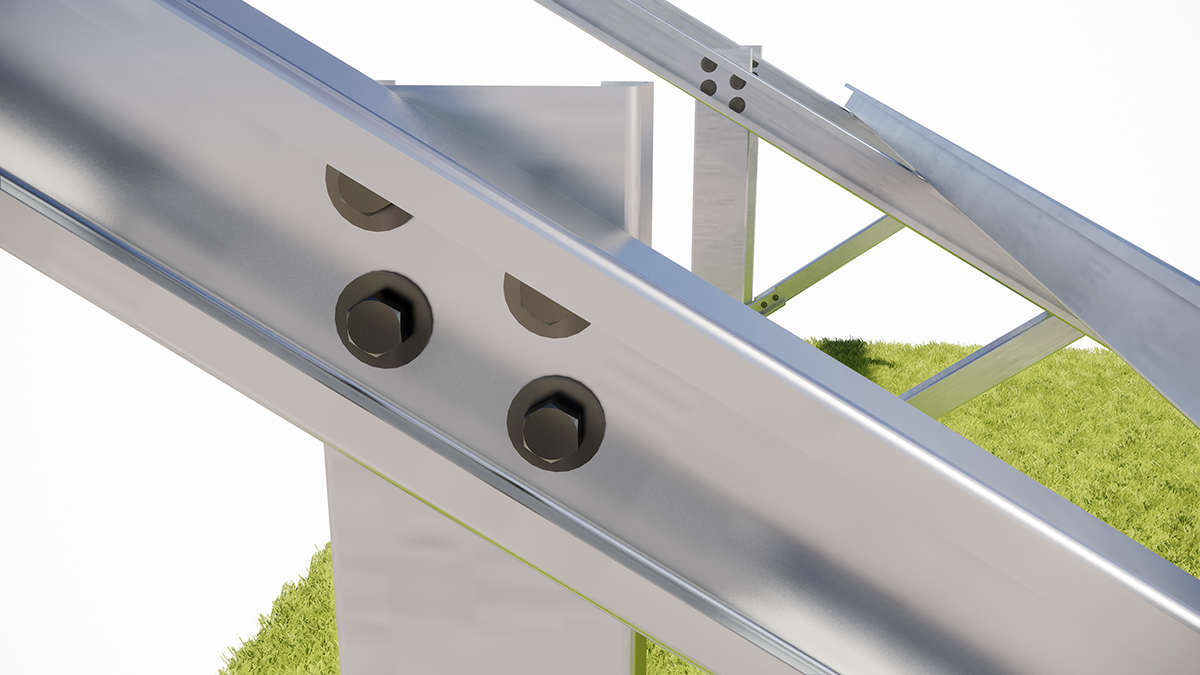

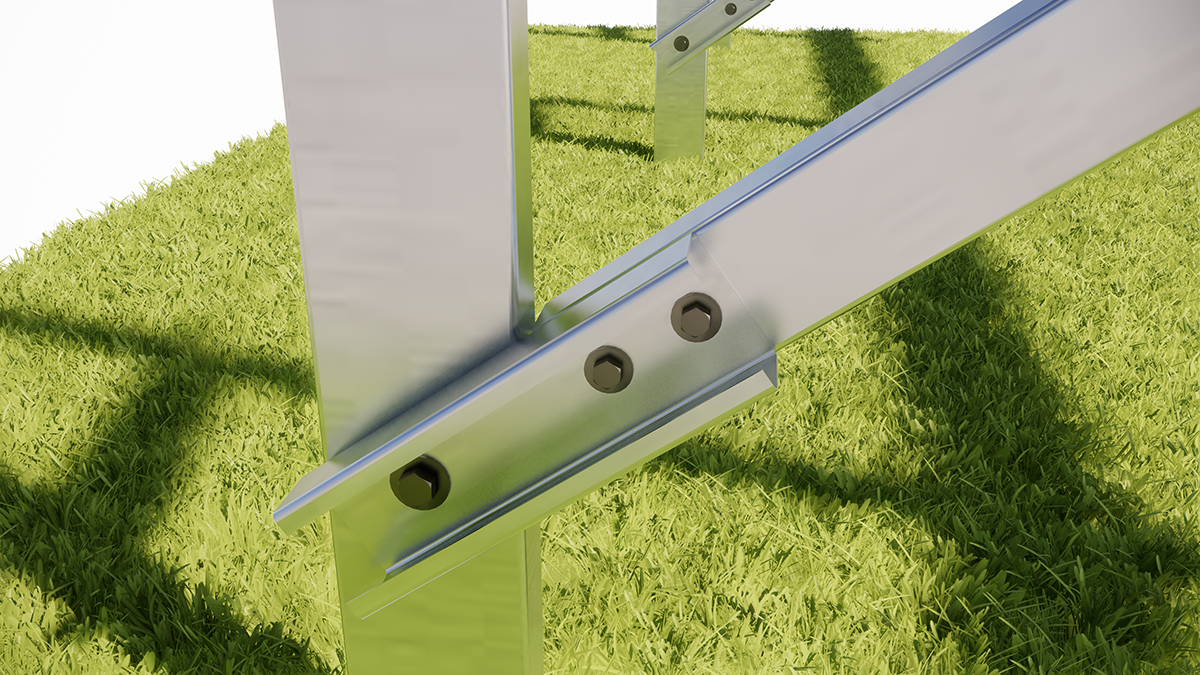

Material: high strength structural steel S350GD
Anti-corrosion coating: hot-dip galvanizing, optional Magnelis coating

PW System also meets Eurocode 1 standard, and are sized to withstand up to 110km/h wind load and 100 cm snow.

In order to make the most economical use of the solar panels, our experts recommend creating a row spacing that ensures that the panel is never covered, regardless of the solar incidence angle.

Layout Solar panel Angle Suggested row distance (mm)

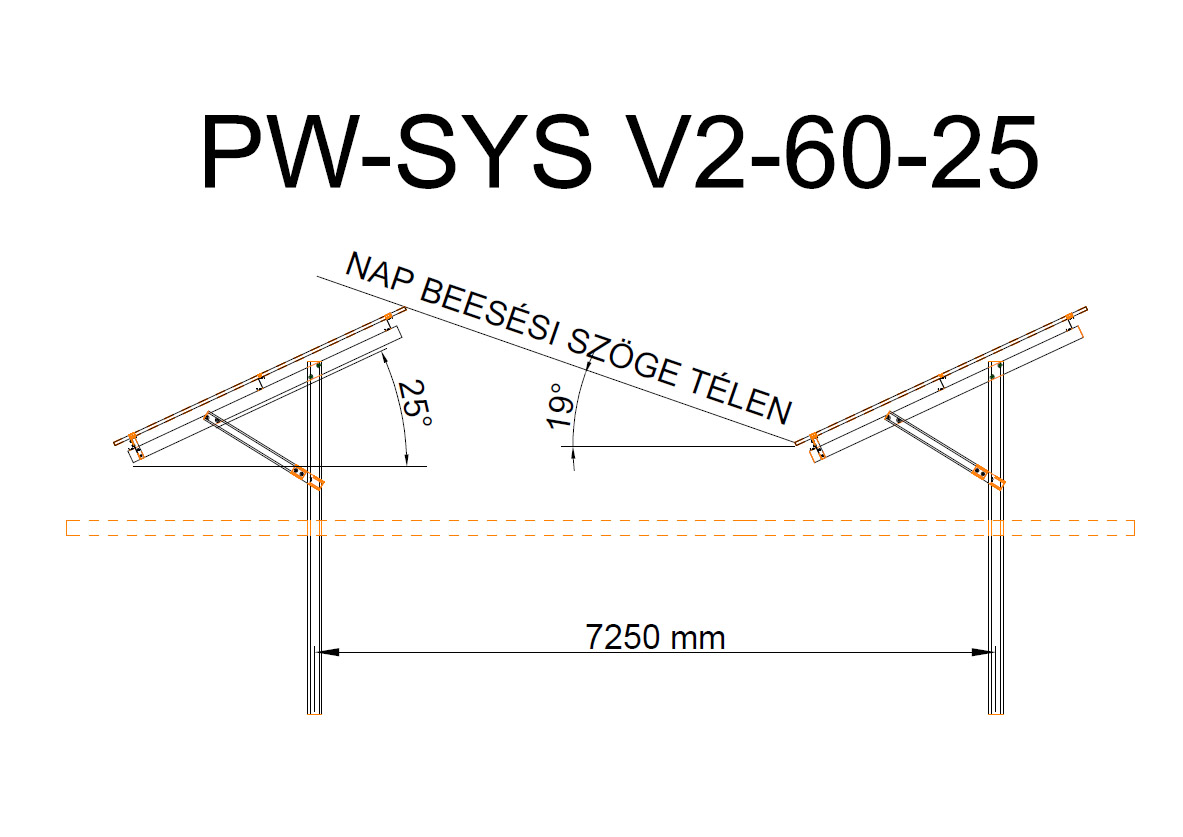

V2 60 25 7250

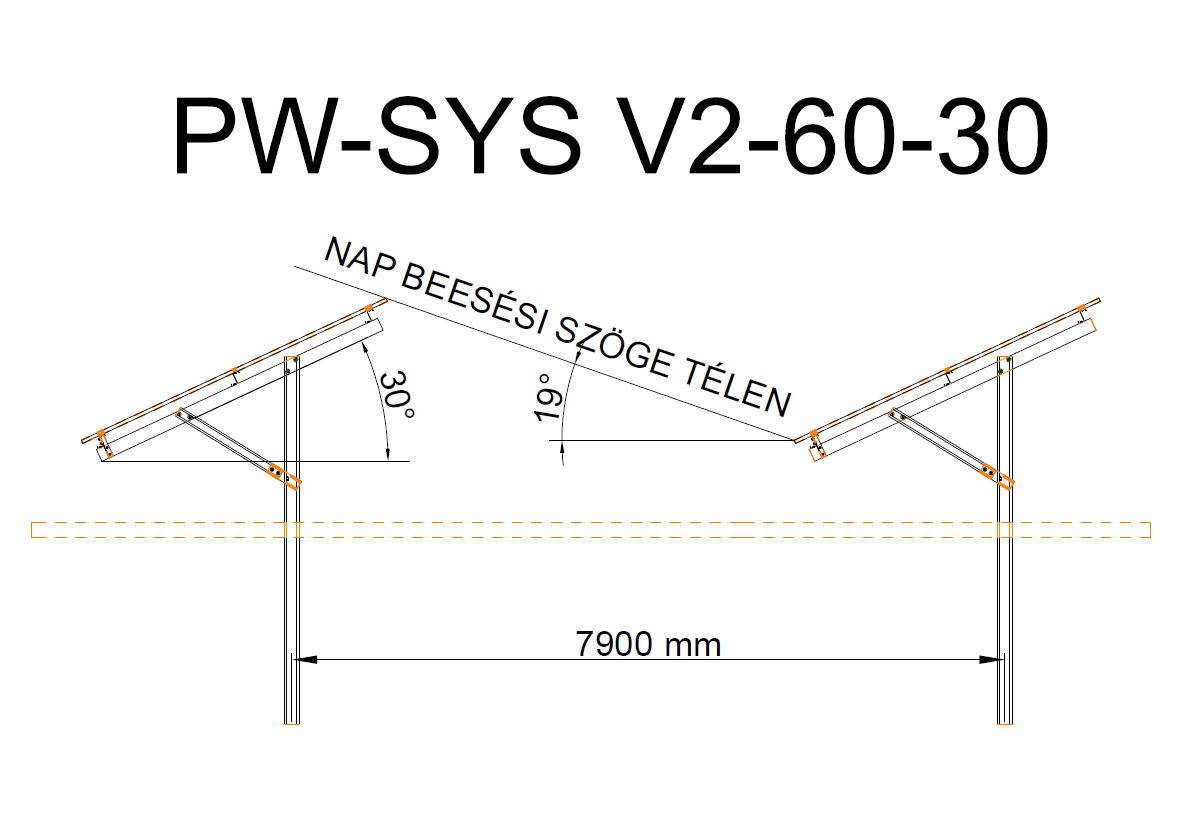

V2 60 30 7900

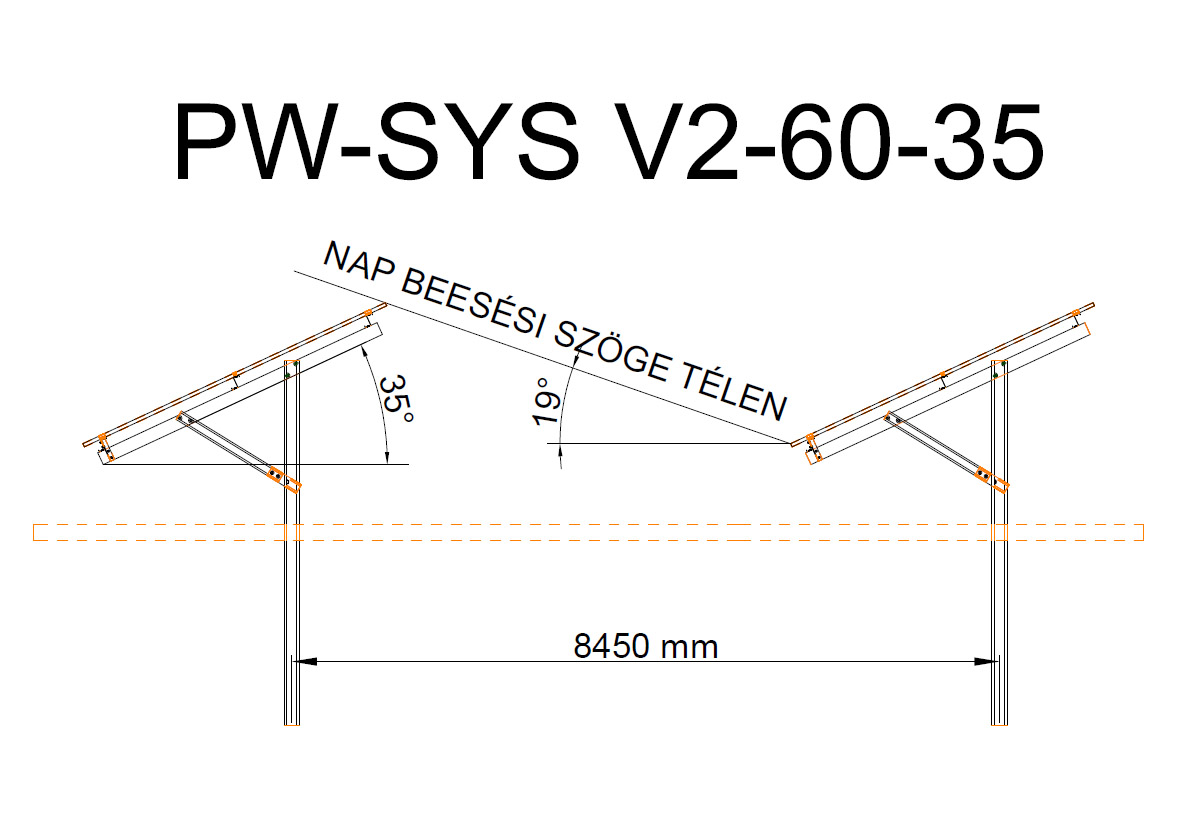

V2 60 35 8450

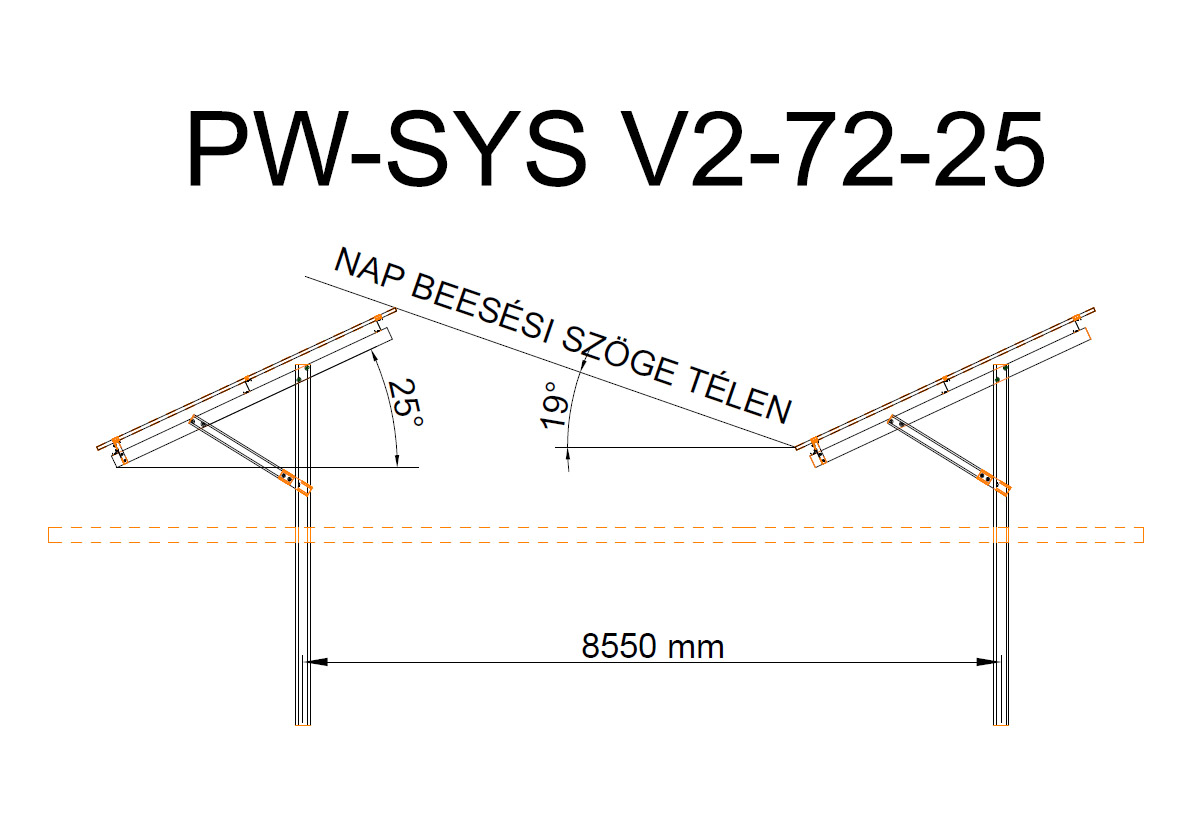

V2 72 25 8550

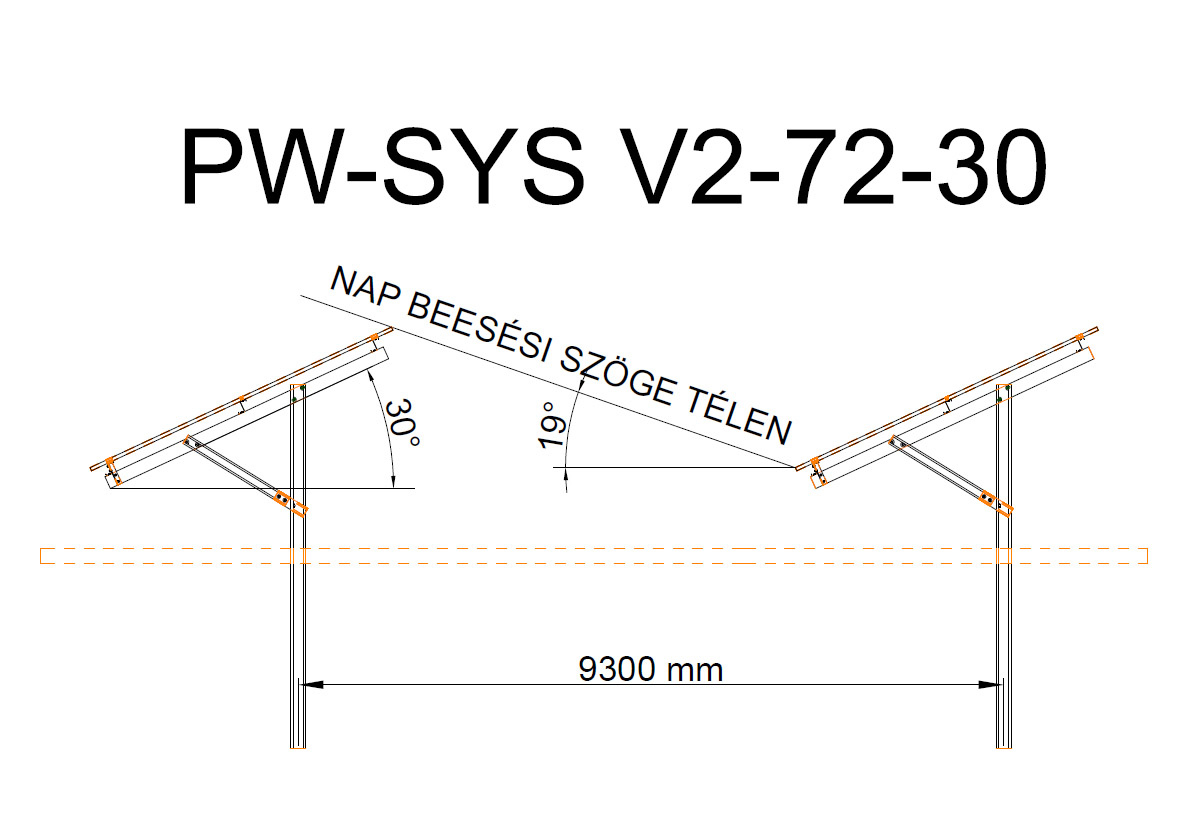

V2 72 30 9300

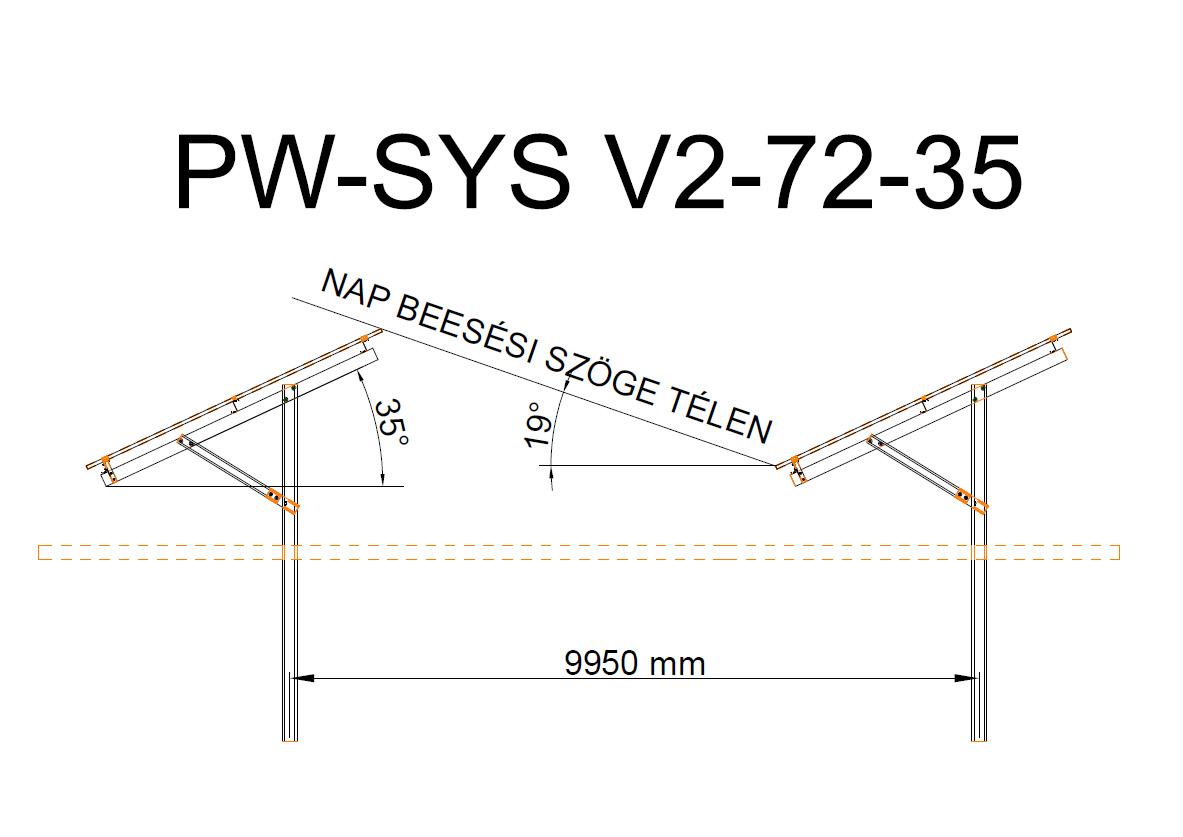

V2 72 35 9950
