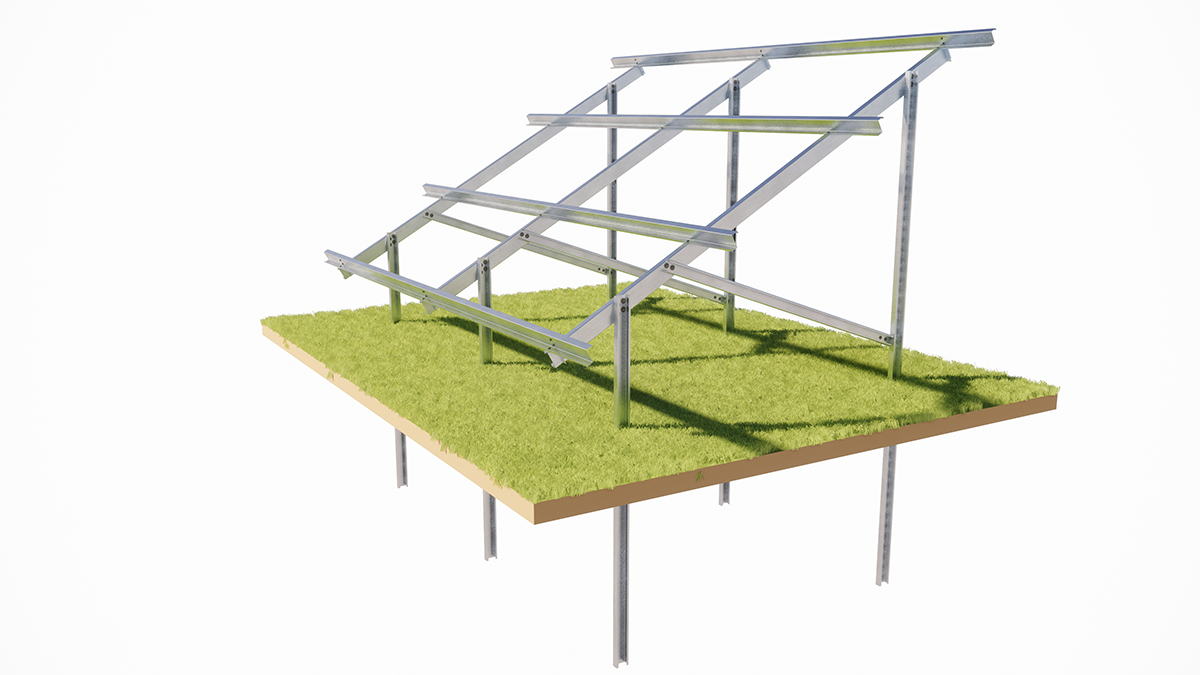

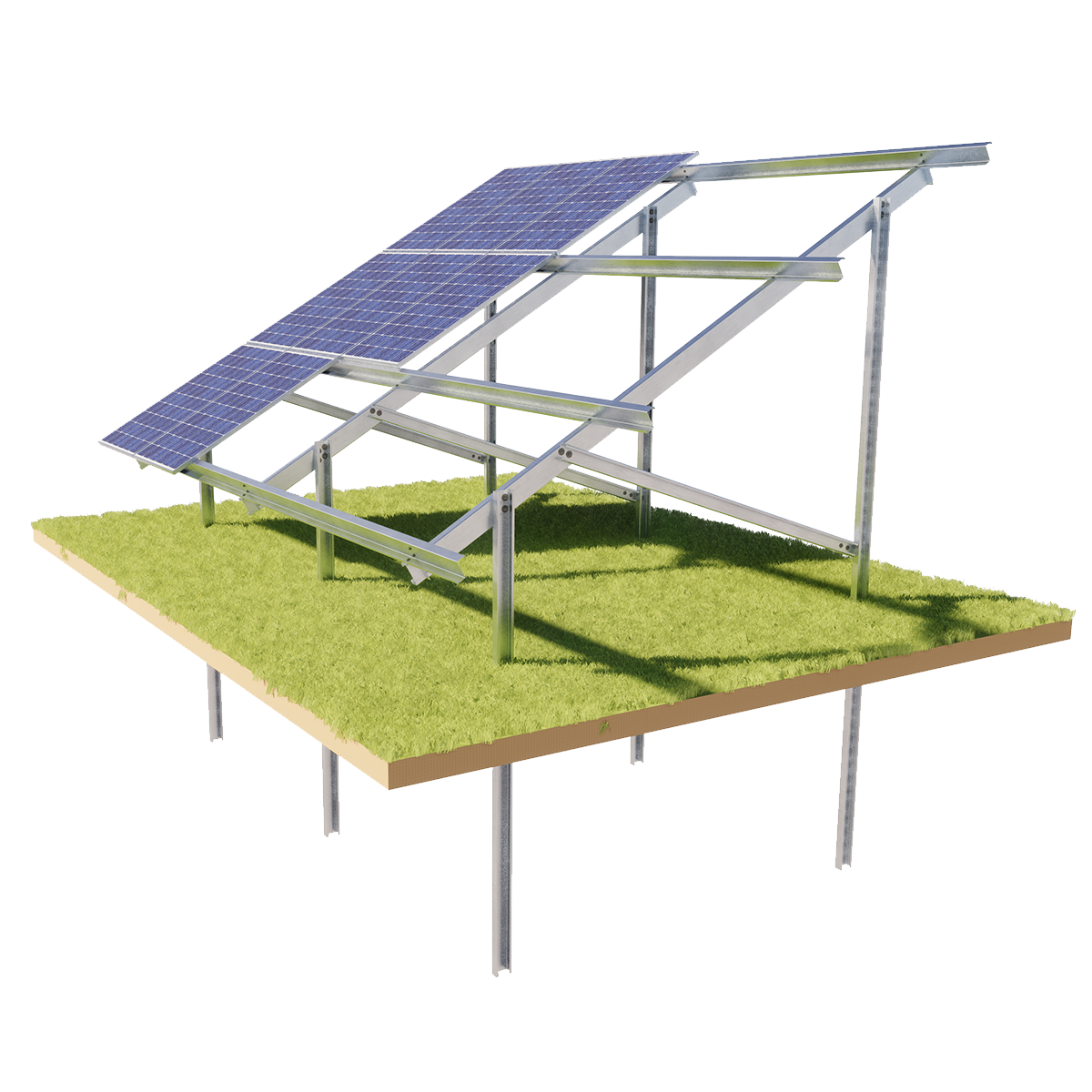

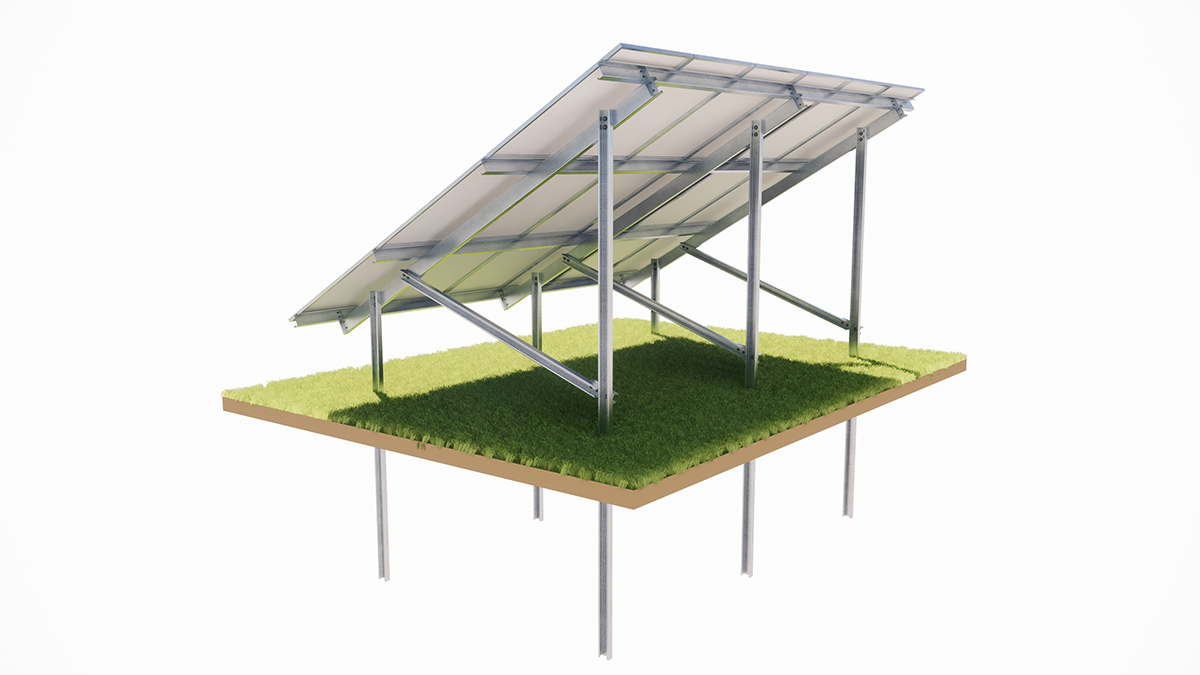

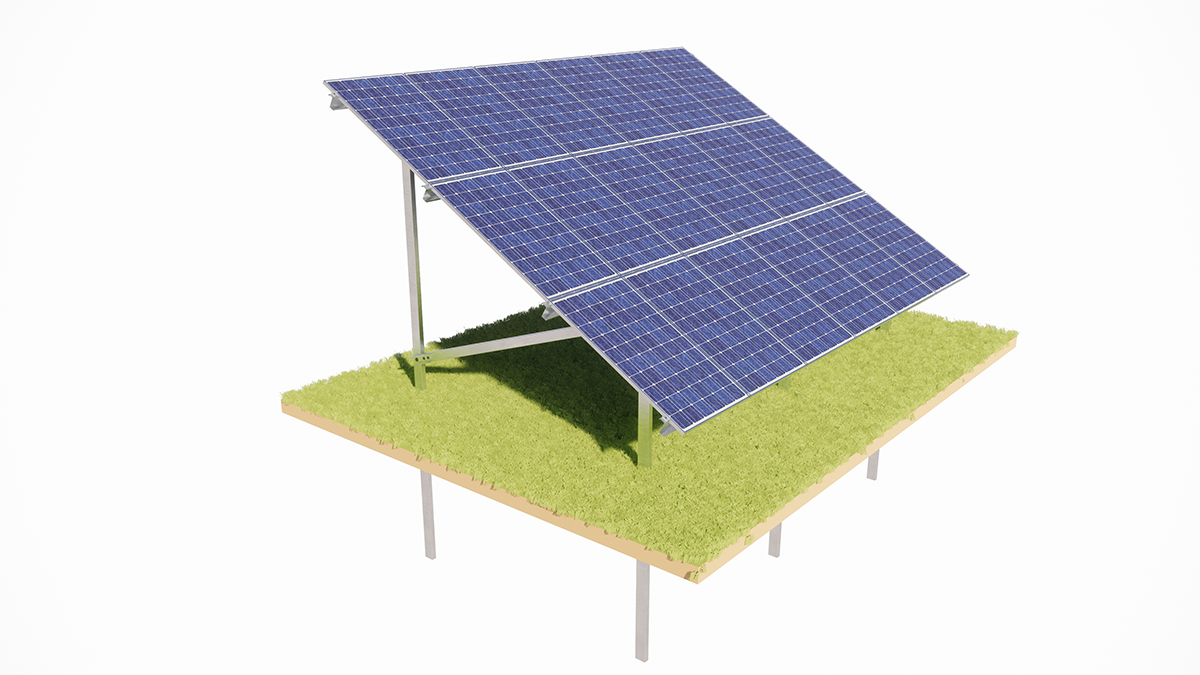

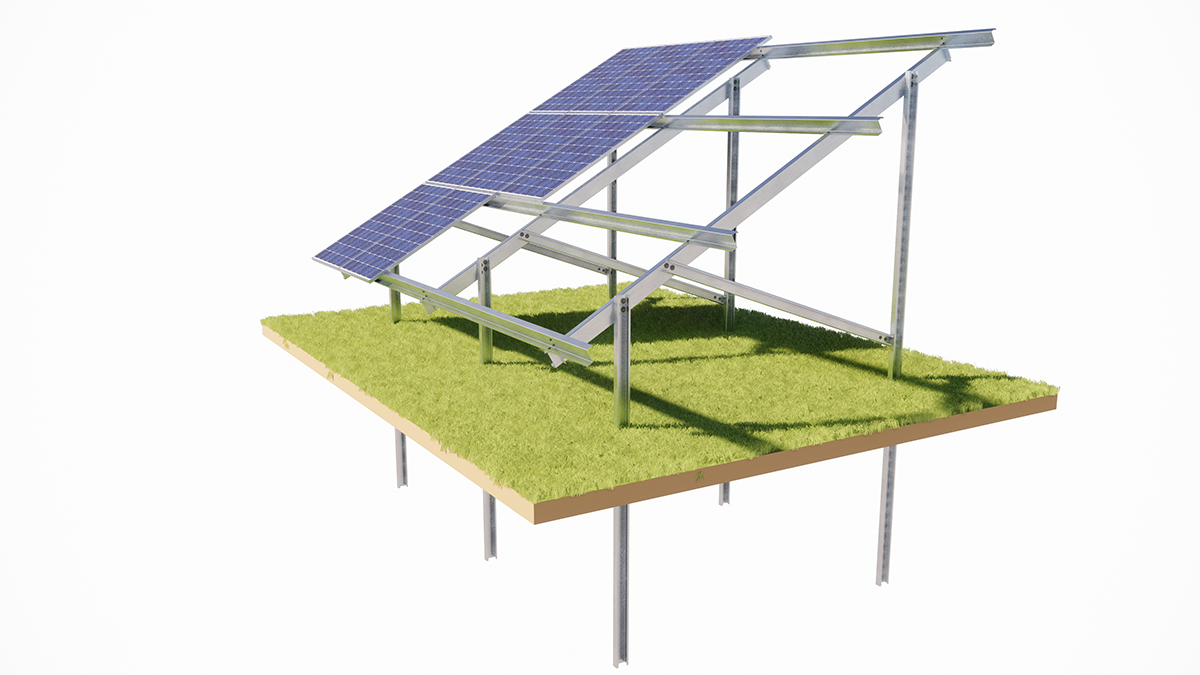

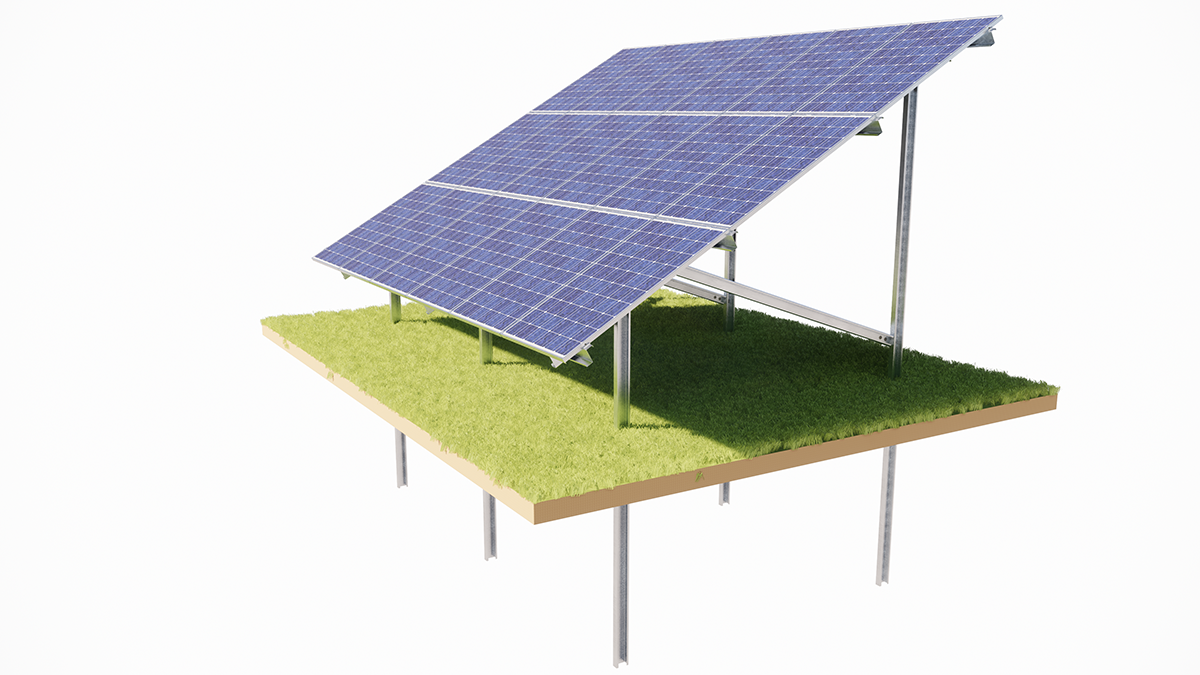

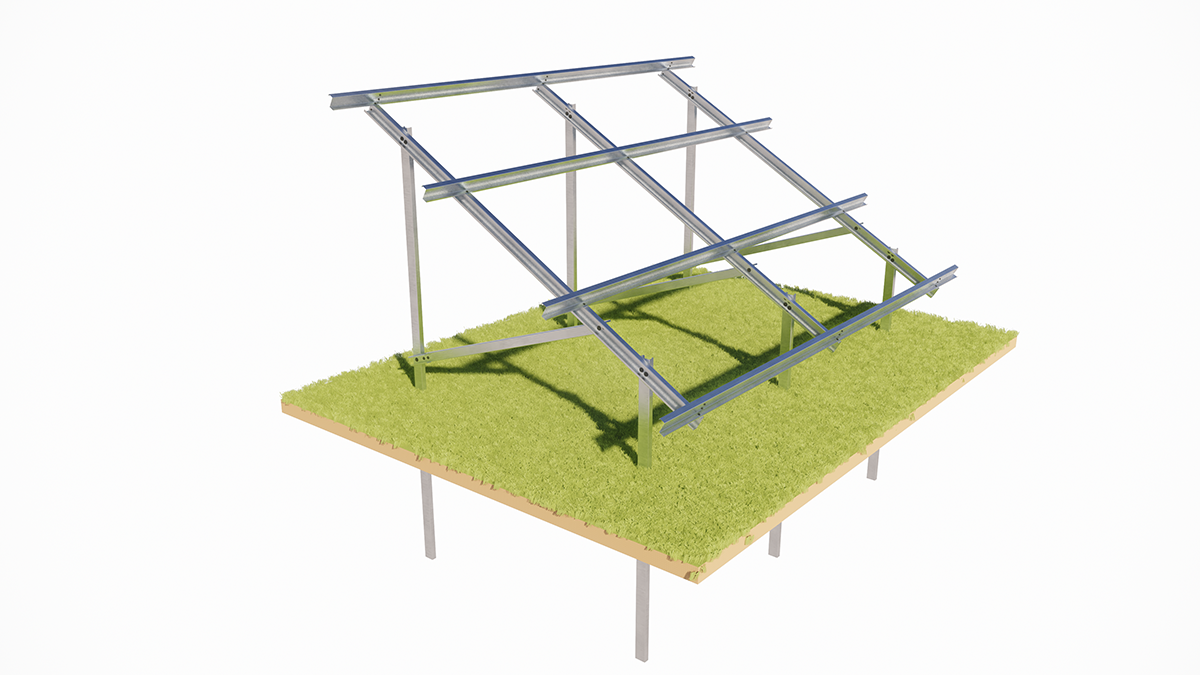

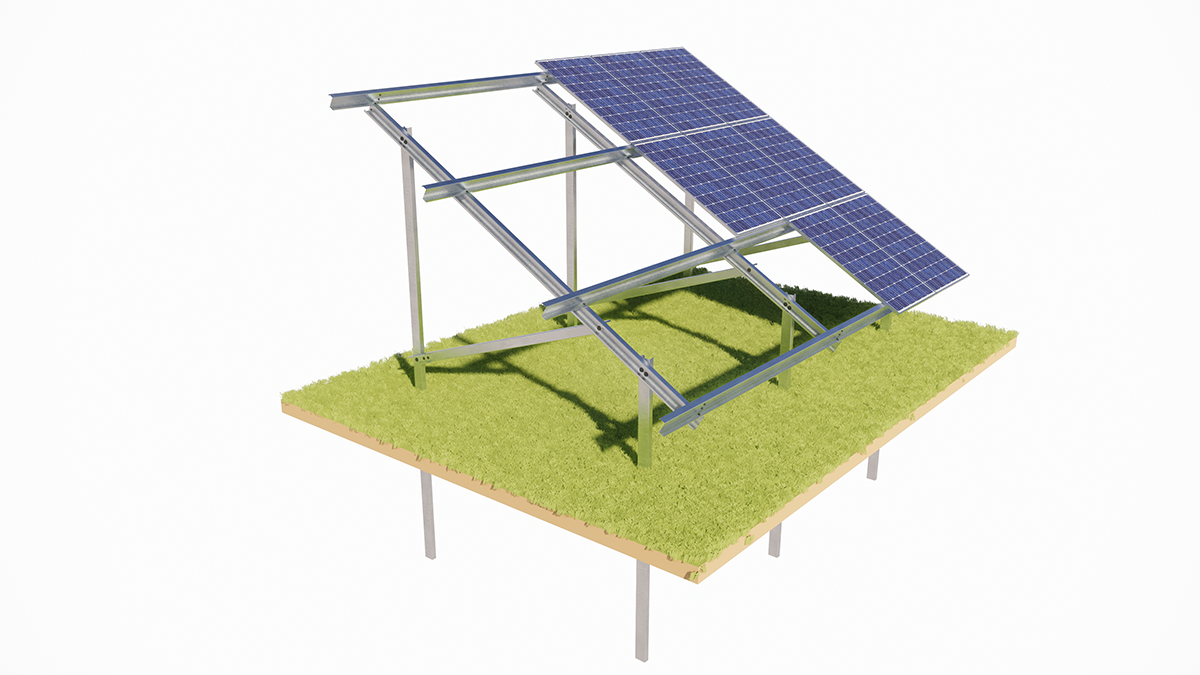

Arrangement of modules: 3-row, vertical
Tilt angle: 20°/25°/30°/35°
Installation: post driven ground mount
Solar module size: 60-cell (120 half-cell), 72-cell (144 half-cell)
Material: high strength structural steel S350GD
Anti-corrosion coating: hot-dip galvanizing, optional Magnelis coating
PW System also meets Eurocode 1 standard, and are sized to withstand up to 110km/h wind load and 100 cm snow.
In order to make the most economical use of the solar panels, our experts recommend creating a row spacing that ensures that the panel is never covered, regardless of the solar incidence angle.
| Layout | Solar panel | Angle |
Suggested row distance(mm)
|

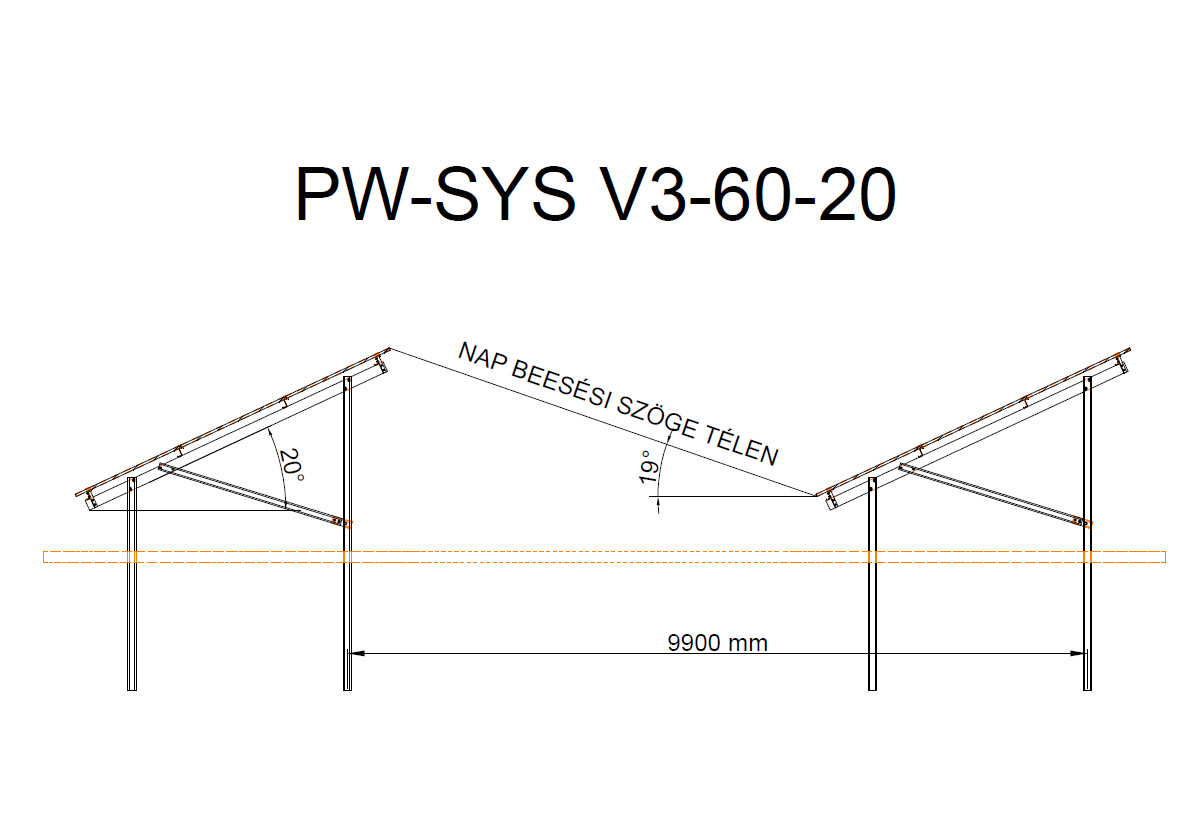

| V3 | 60 | 20 | 9900 |

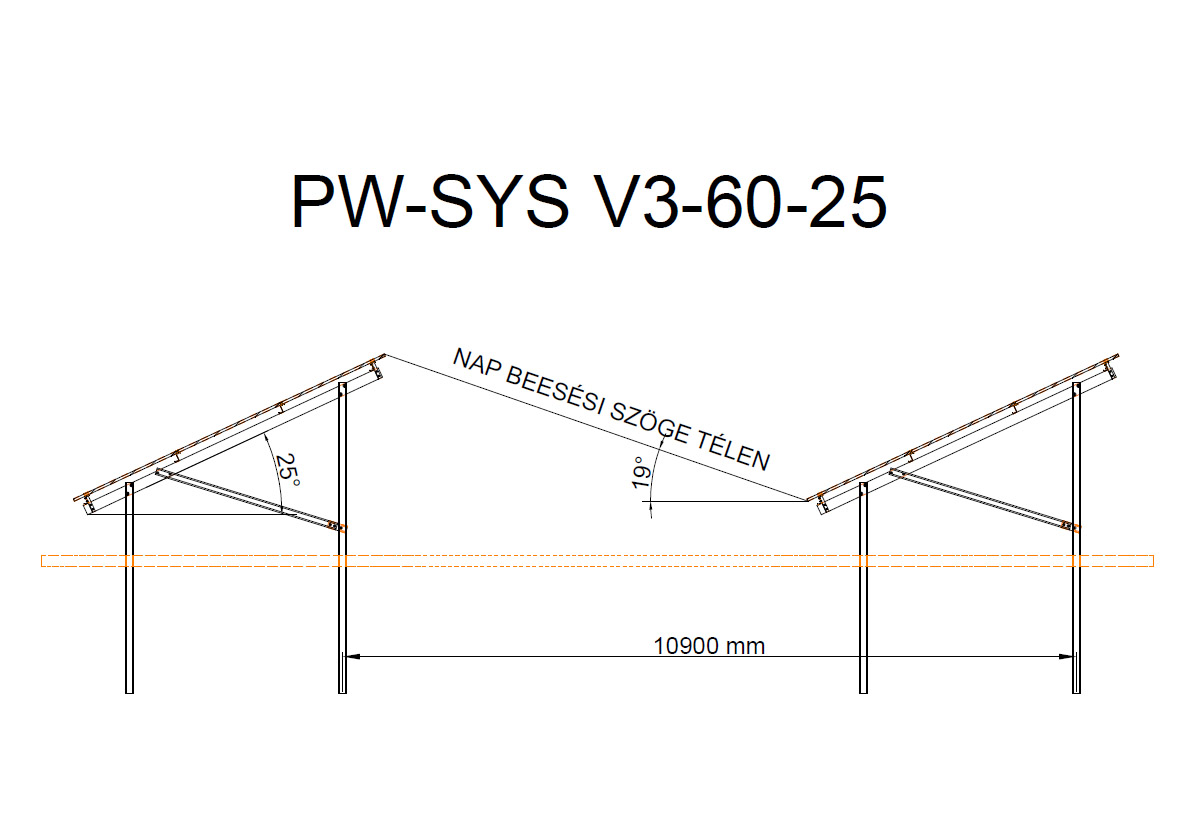

| V3 | 60 | 25 | 10900 |

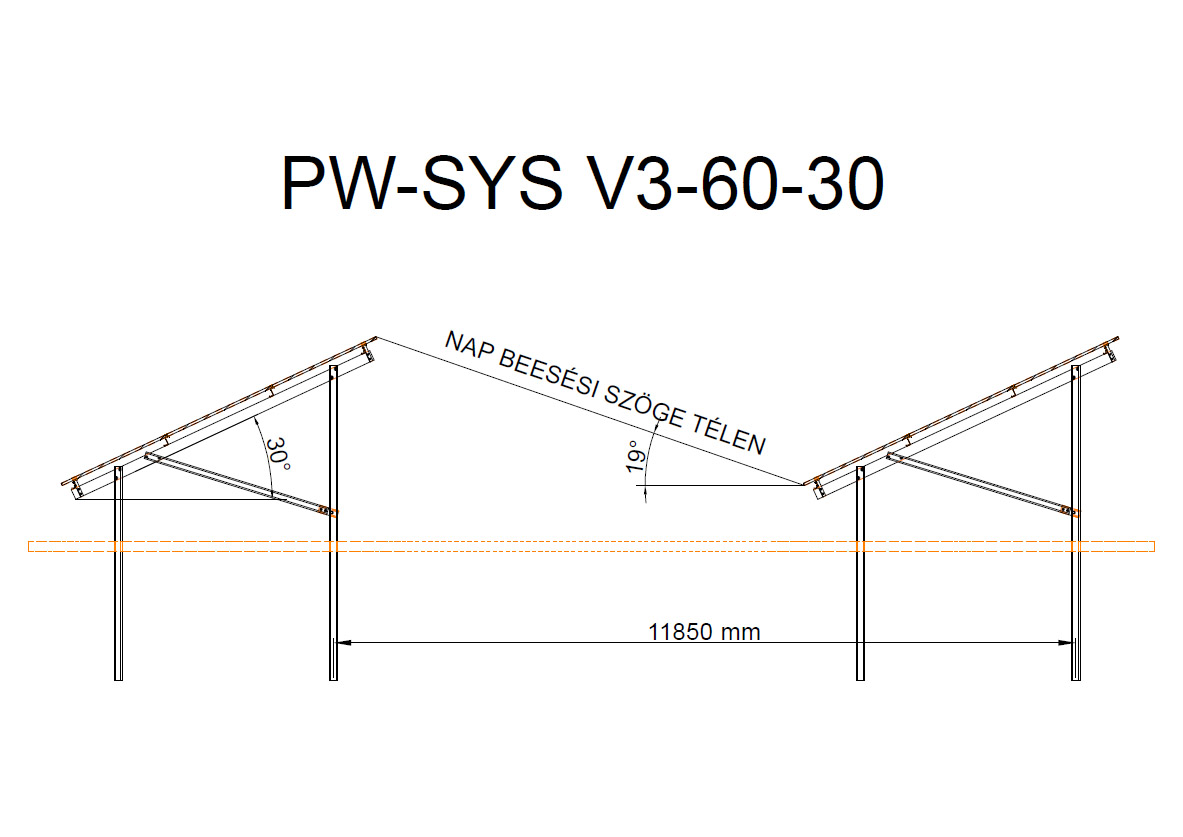

| V3 | 60 | 30 | 11850 |

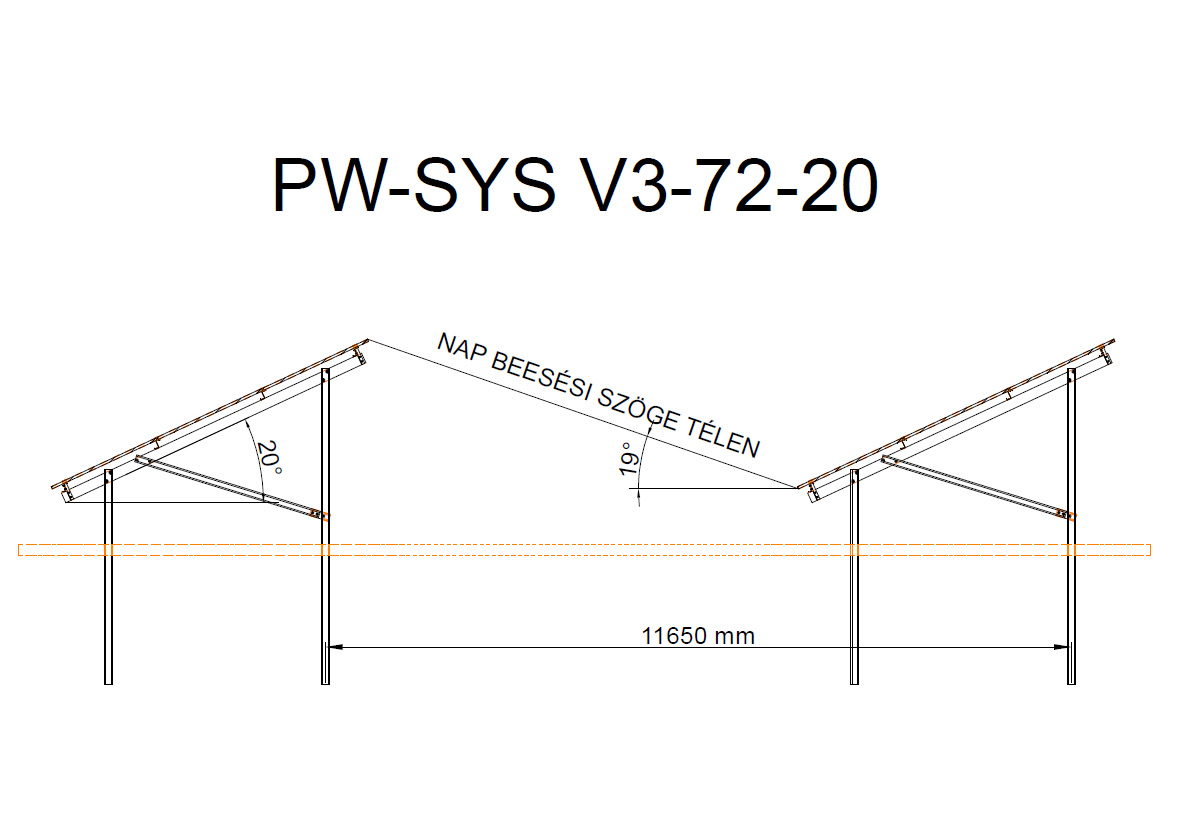

| V3 | 72 | 20 | 11650 |
| V3 | 72 | 25 | 15850 |
| V3 | 72 | 30 | 13950 |
